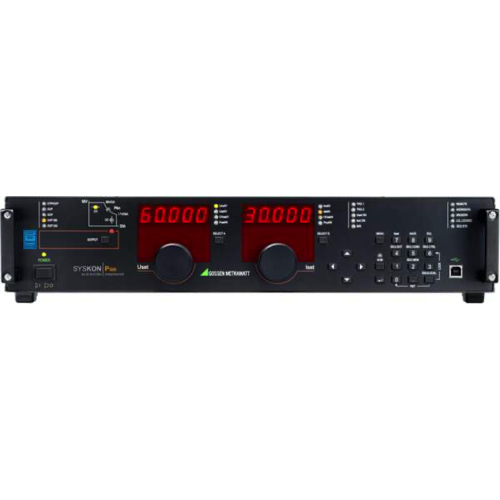

Gossen Metrawatt SYSKON P800-060-040 Programmable DC Power Supply (800W, 60V, 40A)

Output Power: Up to 800 W

Output Voltage Range: 0 – 60 V

Output Current Range: 0 – 40 A

Input Voltage: 100 – 240 Vac (wide-range)

Input Frequency: 50 – 60 Hz

Programming & Control: Analog & digital programmable, fast response (≤1–2 ms)

Resolution:

Voltage: 1 mV - Current: 1 mA

Accuracy (23°C ±5°C):

Voltage: ≤0.05% + 30 mV

Current: ≤0.05% + 90 mA

Dynamic Performance:

Excellent transient response, suitable for fast load changes

Ripple & Noise:

Low ripple output (precision testing applications)

Memory & Sequences: Up to 1700 programmable sequence steps

Interfaces: USB, RS232 (standard), GPIB (optional), analog interface

Additional Functions: Sense terminals, dynamic sink operation, master-slave capability

Protection: Overvoltage (OVP), overcurrent (OCP), overtemperature (OTP), short circuit

Applications: Automotive, electronics testing, endurance & stress testing

Dimensions (W × H × D): ~447 × 102 × 541 mm

Weight: ~10 kg
