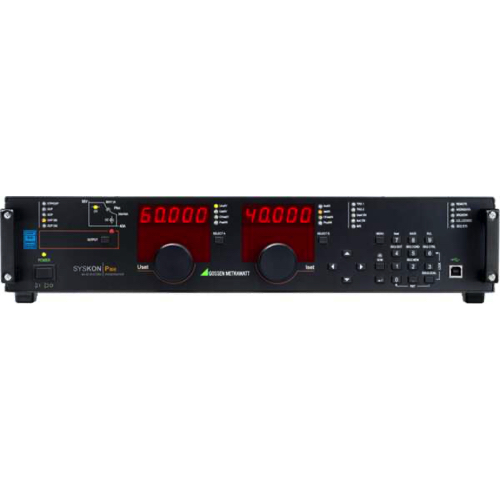

Gossen Metrawatt SYSKON P1500-060-060 Programmable DC Power Supply (1500W, 60V, 60A)

Output Power: Up to 1500 W

Output Voltage Range: 0 – 60 V

Output Current Range: 0 – 60 A

Input Voltage: 115 / 230 Vac (wide-range, PFC supported)

Input Frequency: 47 – 63 Hz

Programming & Control: Analog & digital programmable, fast response (≈1–2 ms)

Resolution:

Voltage: 1 mV - Current: 1 mA

Accuracy: Voltage / Current: ≤0.05% + offset (high precision class)

Dynamic Performance: Excellent transient response for fast load & setpoint changes

Ripple & Noise: Low ripple output (~40 mVp-p / 50 mArms typical)

Memory & Sequences: Up to 1700 programmable sequence steps

15 preset memory configurations

Interfaces: USB, RS232 (standard), GPIB (optional), analog interface

Additional Functions: Sense terminals, dynamic sink operation, master-slave capability

Protection: OVP, OCP, OTP, short circuit protection

Cooling: Temperature-controlled fan

Operating Conditions:

Operating Temperature: 0 – 40°C

Storage Temperature: -25 – 75°C

Dimensions (W × H × D): ~447 × 102 × 541 mm

Weight: ~10 kg

Datasheet
