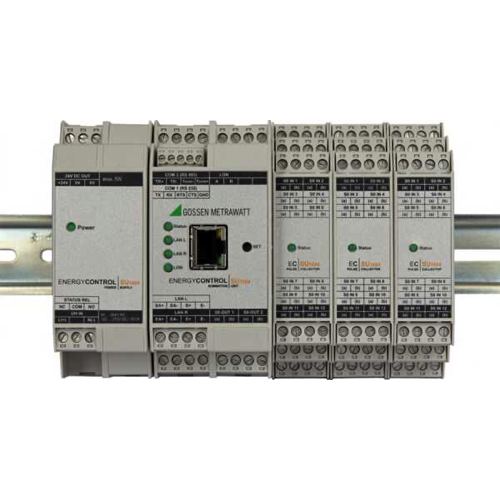

Gossen Metrawatt SU1604 Energy Data Loggers - Summator (64 CH)

Processing channels: 64 channels (for calculating energy, power and costs)

LON Meter Inputs: Up to 64 LON devices

Interfaces: RS-232; RS-485; ECS LAN; LON; Ethernet: 100 MBit/s with ECL access via TCP/IP (4 sockets)

Software: Energy Control Language (ECL) for programming evaluations

Outputs

Relay outputs: Two S0 semiconductor relays: max. 50 V DC, 200 mA, bipolar

Mechanical Design: W 45 mm x H 100 mm x D 114 mm

Mounting: To top-hat rail per EN 50022 / 35mm

Wire Connections

Grid dimension: 3.5 mm to 5 mm (depending on terminal)

Rigid/flexible cross-section: 0.14 to 2.5 mm²

Tightening torque: 0.22 to 0.6 Nm (depending on terminal)

Memory: MRAM: 4 MB

Ambient Conditions

Operating temperature range: -10 ... +55 °C

Storage temperature range: -25 ... +70 °C

Relative humidity: < 75%

Elevation: Up to 2000 m

Place of use: Indoors

Pollution degree: PD2
