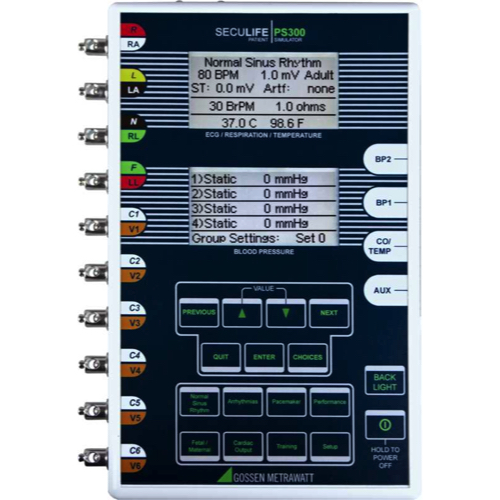

Gossen Metrawatt SECULIFE PS300 Multi-Parameter Patient Simulator (30, 40, ..., 280, 300 BPM)

Device:

Construction: 227.8 x 153.4 x 43.7 mm/ABS Plastik

Weight: < 2 Lbs (0.91 kg)

Face Plate: Lexan/Back printed

Operating Range: 15 to 40 °C

Storage Range: -20 to 65 °C

General:

Display: 1 LCD graphic, 128 x 64 pixel

Backlight: Yes

Lead Test Terminals: Yes

RS232: Yes

Power: 2 x 9 V Batteries

Battery Eliminator: Without SECULIFE OX: 9 V DC, 200 mA; With SECULIFE OX: 10 V DC, 500 mA

ECG-NSR: 30, 40, 45, 60, 80, 90, 100, 120, 140, 160, 180, 200, 220, 240, 260, 280, 300 BPM

ECG-Performance:

Sine: 0.1, 0.5, 5, 10, 40, 50, 60, 100 Hz

Square: 0.125, 2.000 Hz

Triangle: 2.000, 2.500 Hz

Pulse: 30, 60, 120 BPM

R-wave: 30, 60, 80, 120, 200, 250 BPM

Respiration: Yes

NIBP: No

Pacemaker: No

Arrhythmias: 49

Blood Pressure: 2

Temperature: YSI 400/700; 0, 24, 30, 37, 40 °C

Special Modes: Yes

SpO2: With Seculife OX

Fetal/Maternal: Option

Cardiac Output: Option

Training Mode: Yes
