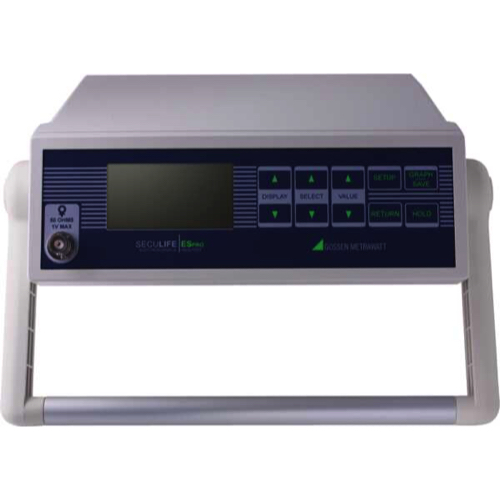

Gossen Metrawatt SECULIFE ES PRO Electrosurgical Analyzer

Device:

Display: LCD Graphical 128 x 64 pixels

Construction: 8.6 x 23.1 x 20.3 cm/ABS Plastic

Weight: ≤ 3 lbs. (1.36 kg)

Face Plate: Lexan/Back printed

Operating Range: 15 to 30 °C

Storage Range: -40 to 60 °C

Setup Memory: EEPROM, All Parameter

Power Consumption:

EIN: less than 150 mA

AUS: less than 40 µA

Power Supply Adapter: 6 V DC, 500 mA

Measuring:

Input Compatibility

RF Current Transformer: 50 Ohm

RF Current Transformer: 0.1:1 / 1:1 free to choose by user

Input Voltage Range

Voltage (RMS): 2.0 – 700.0 mV RMS

Input Resolution: 0.1 mV RMS

Voltage (Peak, Peak-to-Peak): 1000,0 mV

Resolution: 0.1 mV

Frequency: 10 kHz - 10 MHz

Accuracy:

0.5 mV, ≤ 50 mV

1% reading, > 50 mV, up to 1 MHz

3% reading, > 50 mV, 1 to 10 MHz

Maximum Input Voltage: 33 V p-p internally Protected

Input Impedance: 50 ohms

Calculated Ranges

Strom (with 0,1:1 CT): 700.0 mA RMS

Resolution: 0.1 mA

Current (with 1:1 CT): 70.00 mA RMS

Resolution: 0.01 mA

Wattage: 999.9 Watt

Resolution: 0.1 Watt

Crest Factor: 1.4 to 500

Resolution: 0.1
