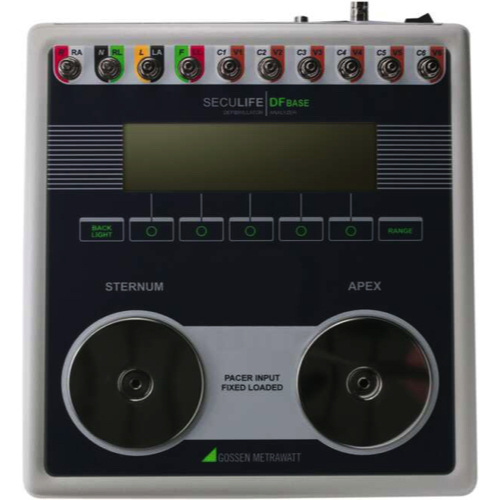

Gossen Metrawatt SECULIFE DF BASE Defibrillator Analyzer (5000 V, 1000 joule)

Display: LCD Graphical /256 x 64 pixels /Backlight

Construction: 8.6 x 24.9 x 27.2 cm/ABS Plastic

Weight: < 5 Lbs (2.3 kg)

Face Plate: Lexan/Back printed

Operating Range :15 to 40 °C

Storage Range: -20 to 65 °C

Power Supply

Battery: 9 V DC [2 required.]/[NE 1604] Alkaline

Power:

BE 2006 PE[220 V AC] US

BE 2006 PE[220 V AC] EU

[10 V, 300 mA]

Method: Biphasic

Load resistance: 50 Ohm +/- 1% non-inductive(<1 µH)

Display resolution: 0.1 Joule

Measurement time window: 100 ms

Absolute max peak Voltage: 6000 Volts

Pulse width: 100 ms

Voltage: Low Range: < 1000 Volts; High Range: < 5000 Volts

Max current: Low Range: 24 Amps; High Range: 120 Amps

Max energy: Low Range: 50 Joules; High Range: 1000 Joules

Datasheet
