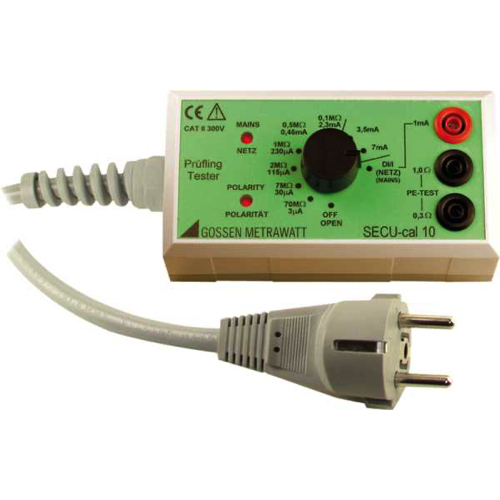

Gossen Metrawatt SECU-cal 10 Calibrating Adapter (600 V DC; 250 V AC)

Maximum Voltage

For measuring insulation resistance: 600 V DC

Equivalent leakage current/ equivalent device leakage current: 250 V AC

Equivalent patient leakage current: 250 VAC

Leakage current: 250 V AC

Maximum Current

For measuring protective conductor resistance: 1 A DC/AC eff

Insulation resistance: 2 mA

Equivalent leakage current: 3.5 mA ACeff

Frequence AC: 50 Hz ... 60 Hz, sinusoidal

Dimensions 125 mm x 66 mm x 41 mm

Weight approx. 0.26 kg with batteries

Datasheet
