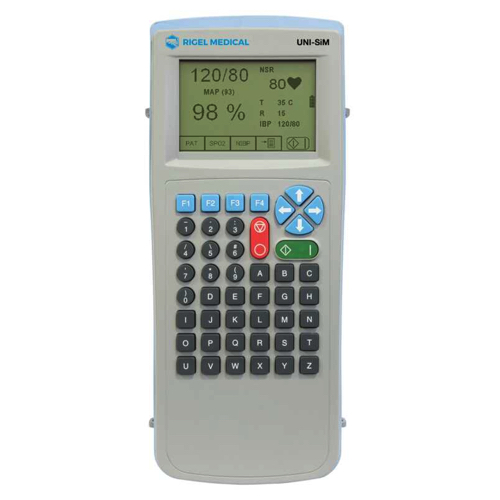

Gossen Metrawatt Rigel Uni-Sim Vital Signs Simulator (20 - 300BPM)

General:

Operation: Battery cell, in-situ charge

Battery Charger: 100–240 VAC, 50/60 Hz

Supply: 12 VDC centre positive

Memory Capacity: Approx. 5,000 records

Communication: via Bluetooth

Display: Monochrome, ¼ VGA full graphics

Keypad: Alpha-numeric

Weight: < 1.5 kg (< 3.5 lbs)

Size (L x W x D): 270 x 110 x 75 mm / 10.5 x 4 x 3"

Environmental Protection: IP 40

Non-Invasive Blood Pressure Simulation:

Waveform: Oscillometric

Pulse Volume: High, Medium, Low, Paediatric

Heart Rate: 20 – 300 BPM

Integrated Pump: 0 to 350 mmHg (user configurable)

Leak Test: User configurable between 0 – 350 mmHg

Chronometer: Configurable up to 999 secs

Digital Manometer: 0 – 410 mmHg

Pressure Accuracy: ±0.5% FS

Pressure Units: mmHg, inHg, kg/cm², cmH₂O, mBar, PSI, in H₂O, kPa

Oxygen Saturation Simulation (PULS-R): 30 – 100%

ECG Arrhythmia Simulator:

Heart Rate: 20 – 300 BPM

Simulation: 5 lead (NSR, ST Elevation, ST Depression, Myocardial Infarction, Tall T)

ST Elevation / Depression: 20 – 300 BPM

Myocardial Infarction:

Type: Ischemia, Injury, Infarction, Inferior Infarction

Heart Rate: 20 – 300 BPM

Tall T:

Heart Rate: 80 BPM

T Wave Amplitude: 0 – 1.2 mV (steps of 0.1 mV)

Arrhythmia Waveforms (Atrial):

Simulation: 5 lead

Atrial: Yes

Atrial Conduction: Yes

Ventricular: Yes

Performance Waveforms: Sine, Square, Triangle, Pulse

Pacer Waveforms: Yes

R Wave Detection: Yes

Temperature Simulation: YSI 400 / 700; 25, 33, 37, 41 °C

Respiration Simulation: 5, 10, 15, 30, 60, 120, 180 breaths per minute

Invasive Blood Pressure Simulation: Yes
