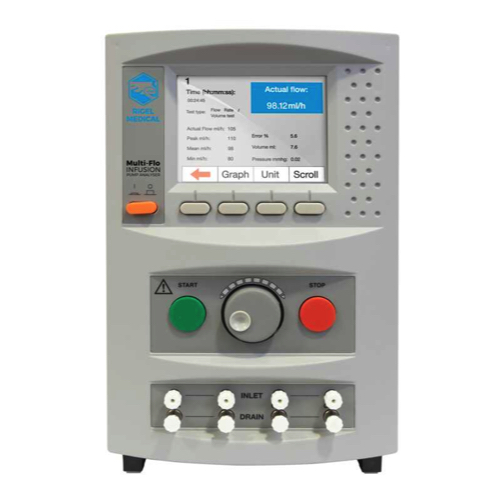

Gossen Metrawatt Rigel Multi-Flo 2Ch Infusion Pump Analyzer (0.100 – 1450 mL/h; 2 CH)

Flow Range (display): 0.010 – 1500 mL/h

Measured Flow Range: 0.100 – 1450 mL/h

Flow Resolution: up to 10 µL/h

Flow Accuracy:

0.1 – 700 mL/h: ±1% of reading

701 – 1500 mL/h: ±(1 + x)% (dynamic)

Volume Range: 0.001 – 9999 mL

Flow Update Rate: 1 Hz

Pressure / Occlusion:

Pressure Range: -500 to 2500 mmHg

Back Pressure Setting: -200 to 600 mmHg

Pressure Units: mmHg, PSI, bar, kPa

PCA / Bolus Measurement:

Volume Range: 0.5 – 100 mL

Accuracy: ±1% of reading

Basal Flow Rate: 1 – 30 mL/h

Dimensions: 300 x 204 x 220mm/11.8 x 8 x 8.6” (w x d x h)

Weight: 6kg/13lbs (2 channel)

Mains Supply: 90-264VAC, 50/60 Hz, 60W

Mains Cable: Standard IEC 10A connector

Environmental Protection: IP40

PC Communication: USB B

Keyboard Communication: USB A

Display: LCD color graphic display ¼” VGA

Datasheet
