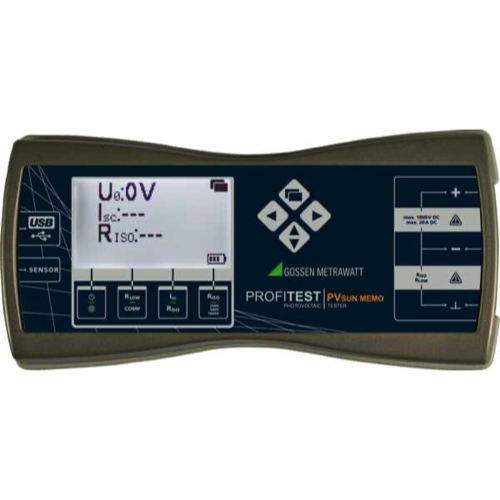

Gossen Metrawatt PROFITEST PVSUN MEMO Testing Of Photovoltaic Systems (1000 V DC; 20 A DC)

Voltage measurement: 0 ... 1000 V DC

Current measurement (direct): 0 ... 20 A DC

Insulation resistance measurement: measuring range: 0 ... 20 MΩ, test voltages: 250, 500, 1000 V DC

Earth fault measurement: 0 ... 1000 V DC

Testing for protective conductor continuity: 0 ... 10 Ω / > 200 mA

Display: LCD Multiple display with background illumination; Dot matrix: 128 x 64 pixels

Data Interface: USB 2.0 (USB 2.0 full speed (12 Mbps) compatible)

Protection: Housing: IP 42 per DIN VDE 0470 part 1/EN 60529

Dimensions: 209 x 98 x 35 mm

Weight: approx. 500 g with batteries

Description

Test instrument for testing PV modules and strings with up to 1.000 V / 20 A per DIN EN 62446.

Insulation measurement with up to 1.000 V test voltage, polarity test, ground fault test and protective conductor continuity test.

With measurement cables and adapters in test case.

Internal memory, bidirectional interface, software and USB interface cable
