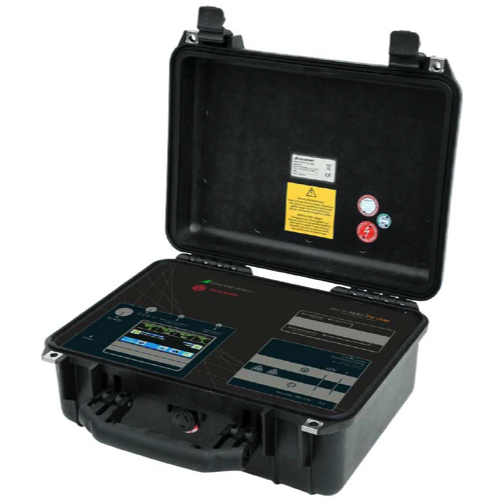

Gossen Metrawatt PROFiTEST PV1540 Testing Of Photovoltaic Systems (1500 V / 40 A)

Voltage [V]: 25, 100, 500, 1500

Current [A]: 2, 5, 10, 40

Temperature [°C]: -40 °C … +120 °C with Pt1000

Irradiation: 0 … 1300 W/m2 (standard sensor)

Weight: Approx. 9.5 kg

Display: Color LCD with LED backlight

Resolution: 480 × 272 pixels

Data Interfaces: USB

Flash memory in the instrument:

Space for 1000 measurements

50 module types can be exported to the PROFITEST PV 1540

Power Supply

Rechargeable lithium-ion battery:

11.25 V; 8850 mAh; 99.6 Wh

Continuous operation: approx. 8 hr.

Power consumption: approx. 40 W

External power pack: In; 90 … 263 VAC; 47 … 63 Hz; 60 W
