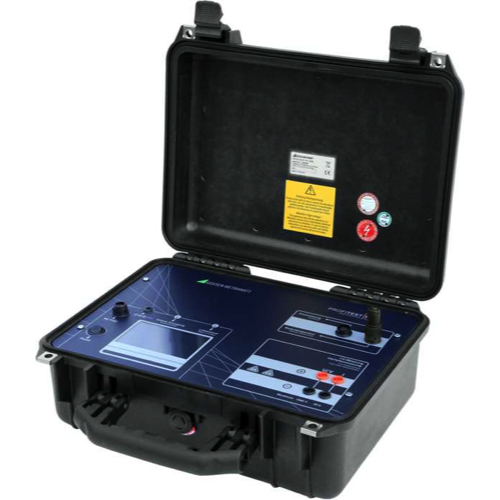

Gossen Metrawatt PROFITEST PV1500 Testing Of Photovoltaic Systems (1500 V / 20 A)

Voltage [V]: 25, 100, 500, 1500

Current [A]: 2, 5, 10, 20

Temperature: -40 ... +120 °C with Pt1000

Irradiation: 0 ... 1300 W/m² (standard sensor)

Sampling rate: Max. 100 kHz

Resolution: 0.01 V ... 0.25 V, 0.005 A ... 0.001 A (depending on the selected measuring range)

Measuring accuracy: Better than 1% (as of 10 W)

Battery: Rechargeable lithium-ion battery, 11.25 V, 8850 mAh, 99.6 Wh (continuous operation: approx. 8 h)

Power consumption: approx. 40 W

External power pack: In: 90 to 263 V AC, 47 to 63 Hz, 60 W

Display: Color LCD with LED backlight

Resolution: 480 x 272 pixels

Protection: IP 20

Dimensions W x H x D: 406 x 330 x 175 mm

Weight: approx. 7.6 kg (without accessories)
