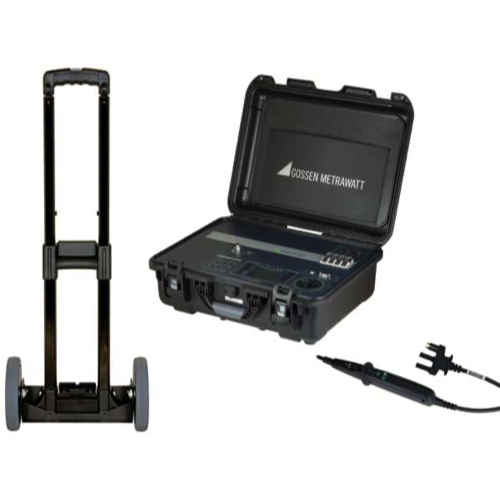

Gossen Metrawatt PROFITEST PRIME Meisterpaket Testing Of Electric Machines (0 – 1000 V; 0 – 10 A; 15.4 Hz – 420 Hz)

Standards: IEC 61010, EN 61557, DIN VDE 0100, DIN VDE 0105

Applications: Electrical installation testing, commissioning, inspection, troubleshooting, professional service & maintenance

Measurement Functions:

Voltage: AC/DC 0 – 1000 V

Current: AC/DC 0 – 10 A

Frequency: 15.4 Hz – 420 Hz

Resistance: 0 – 30 MΩ

Continuity: ≥200 mA test current, acoustic signal

Insulation resistance: 50 / 100 / 250 / 500 / 1000 V DC, up to 30 GΩ

Loop impedance: With and without RCD tripping

Earth resistance: Probe & clamp methods

RCD testing: Type AC, A, F, B (standard & selective)

Touch voltage: Measurement & evaluation

Phase sequence test

Automatic Test Sequences: Yes

Display: Large illuminated graphic LCD

Interface: USB (PC communication & data transfer)

Data Memory: Internal measurement memory

Safety Category: CAT IV 300 V / CAT III 600 V

Protection Class: IP40

Power Supply: Rechargeable battery pack

Operating Temperature: –10°C ~ +50°C

Storage Temperature: –20°C ~ +60°C

Dimensions (W × H × D): approx. 240 × 190 × 105 mm

Weight: approx. 1.3 kg
