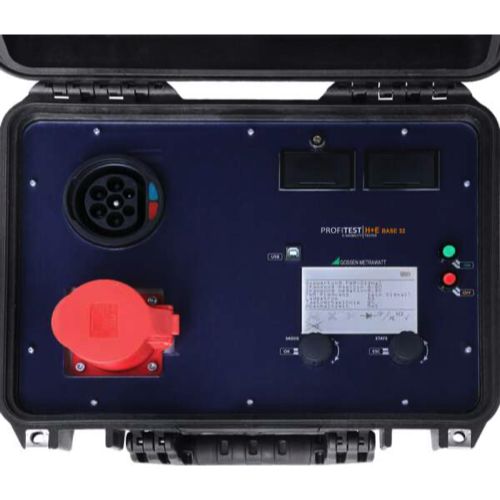

Gossen Metrawatt PROFiTEST H+E BASE 32 Diagnostics Unit for Testing Type 2 Electric Charging Points (3 A / 20 A / 32 A / 63 A)

Standards: IEC 61851-1, DIN EN 61851-1

Key Test Functions:

Vehicle simulation (CP signal)

Cable simulation (PP): 13 A / 20 A / 32 A / 63 A

Vehicle states: A, B, C, D

Phase detection: L1 / L2 / L3

Phase sequence test (CW / CCW)

PWM signal analysis: frequency (1 kHz), duty cycle (%)

Charging current calculation via PWM duty cycle

Voltage level detection: 3 / 6 / 9 / 12 V

Error simulation: CP-PE short, diode short, RCD trip test (30 mA)

Integrated test load socket: CEE 400 V, max. 32 A

Input Voltage: 400 V AC, 3-phase

Frequency: 50 Hz

Test Load Power: Max. 2.9 kVA

Display: 4.2" backlit dot-matrix LCD, 240 × 128 pixels

User Interface: Multilingual menu (DE / EN / FR / ES / IT / PT)

Power Supply: 2 × 9 V rechargeable batteries or external power pack

Interface: USB (firmware update)

Safety Category: CAT III 300 V

Protection Class: Class I

Ingress Protection: IP21

Operating Temperature: –10°C ~ +45°C

Storage Temperature: –25°C ~ +60°C

Humidity: Max. 80% RH, non-condensing

Dimensions (W × L × H): 340 × 410 × 170 mm

Weight: 5.35 kg
