Gossen Metrawatt PE RLO-CHECK-PACKAGE Low Resistance Measurement (0.00 Ω ... 20.0 Ω)

Function: Low-resistance continuity tester for PE & equipotential bonding conductors (especially lighting systems)

Measuring range: 0.00 … 20.0 Ω

Continuity indication: Acoustic + visual alarm (threshold ≤ 1 Ω)

Test method: Automatic polarity reversal (DIN EN 61557-4 / VDE 0413-4)

Foreign voltage detection: 8 … 400 V AC/DC (acoustic + visual warning)

Max. withstand voltage: > 50 V AC/DC

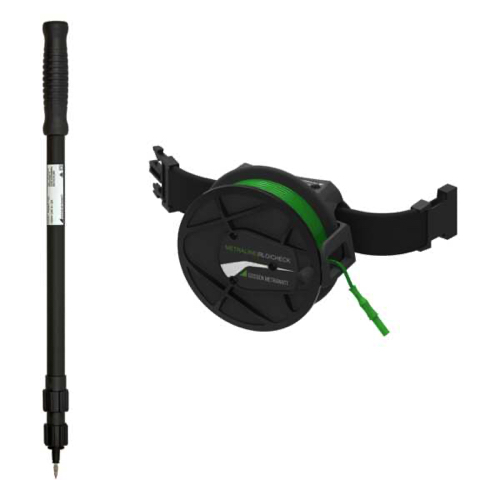

Cable drum: Integrated, 30 m test cable with lead compensation

Operation: One-button operation, manual calibration

Special feature: Ultra-light telescopic rod for hard-to-reach measurement points

Safety category: CAT IV 300 V / CAT III 600 V

Power supply: 4 × AA batteries

Weight: approx. 2.1 kg

Accessories: Cable drum (30 m), telescopic rod, test probe, crocodile clip, spiral cable, PE socket adapter, calibration shunts, waist belt, batteries
