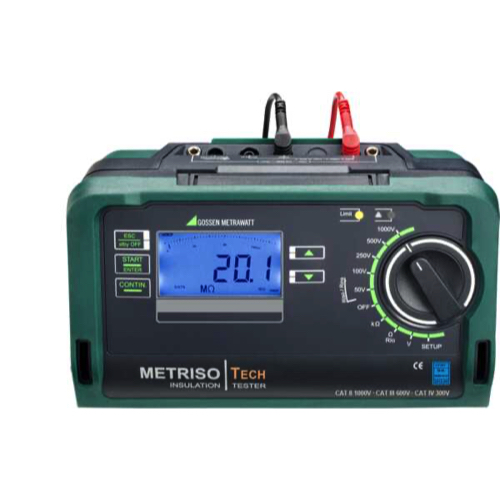

Gossen Metrawatt METRISO TECH Test Instrument For Insulation, Low-resistance And Voltage Measurements (200 GΩ; 1000 V; 10 kΩ)

Main Test Functions:

Insulation resistance: up to 200 GΩ

Test voltages: 50 / 100 / 250 / 500 / 1000 V DC

Low resistance (continuity): 0.17 – 10 Ω, ≥200 mA

Resistance: up to 10 kΩ

Voltage measurement: AC/DC up to 1000 V (TRMS)

Display: Digital + analog bargraph, backlit LCD

Limit indication: LED + acoustic alarm

Safety Category: CAT II 1000 V / CAT III 600 V / CAT IV 300 V

Protection: IP52

Power Supply: 8 × 1.5 V AA batteries

Dimensions (W × H × D): 225 × 130 × 140 mm

Weight: approx. 1.4 kg
