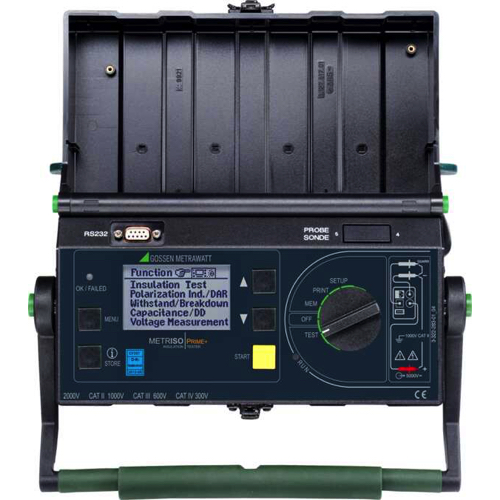

Gossen Metrawatt METRISO PRIME+ Digital High-Voltage Insulation Tester (1 TΩ; 5000 V DC; 1000 V)

Main Test Functions:

Insulation resistance: up to 1 TΩ

Test voltages: 100 / 250 / 500 / 1000 / 1500 / 2000 / 2500 / 5000 V DC

Voltage measurement: AC/DC up to 1000 V

Frequency measurement: 15 Hz – 1 kHz

Capacitance: up to 5 μF

PI / DAR: Yes

Guard terminal: Yes (surface leakage elimination)

Timer: 1 s – 100 min

Data logging: Yes

Display: Digital LCD

Interface: USB

Safety Category: CAT II 1000 V / CAT III 600 V / CAT IV 300 V

Protection: IP40

Power Supply: Rechargeable battery, AC mains, external 12 V

Dimensions (W × H × D): 255 × 133 × 240 mm

Weight: approx. 5.7 kg
