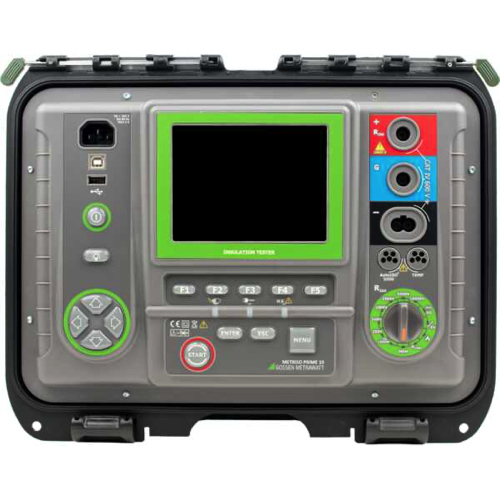

Gossen Metrawatt METRISO PRIME 10 High-Precision Insulation, Low-Resistance And Voltage Meter (10,000 V; 10 MΩ~40 TΩ; 1000 Ω)

Test Voltage: 50 / 100 / 250 / 500 / 1000 / 2500 / 5000 / 10,000 V

Insulation Resistance Range: 10 MΩ … 40 TΩ

Low Resistance Measurement: 0 … 20 Ω / 200 Ω / 1000 Ω

Voltage Measurement: 0 … 750 V AC / DC

Capacitance Measurement: 0 … 49.99 µF

Temperature Measurement: –10 … +99.9 °C (with probe)

Test Current: 1.2 / 3 / 5 mA

Functions: PI, DAR, DD, R/I & R/U diagrams, digital filter, memory storage

Display: 5.6″ graphic LCD

Safety Category: CAT IV 600 V / CAT III 1000 V

Protection Class: IP40

Power Supply: Li-ion rechargeable battery, 14.8 V, 5.3 Ah

Dimensions (L × W × H): 390 × 310 × 180 mm

Weight: approx. 7.0 kg
