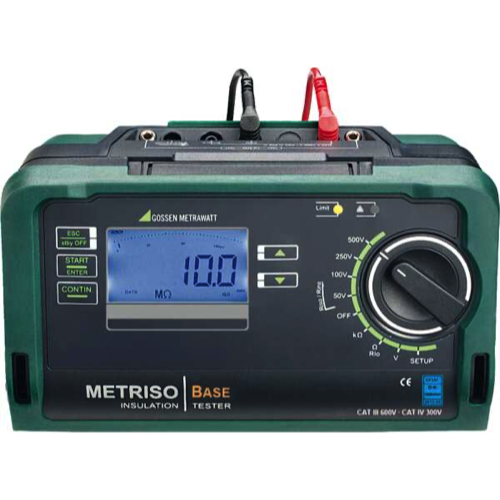

Gossen Metrawatt METRISO BASE Test Instrument For Insulation, Low-resistance And Voltage Measurements (0.17 Ω – 10 Ω; 200 GΩ; 600 V)

Type: Insulation, Low Resistance & Voltage Tester

Insulation Test Voltage: 50 / 100 / 250 / 500 V

Insulation Resistance Range: up to 200 GΩ

Low Resistance Measurement (RLO): 0.17 Ω – 10 Ω (200 mA test current)

Resistance Measurement (R): up to 10 kΩ

Voltage Measurement: AC/DC up to 600 V (TRMS)

Display: Digital + bargraph, backlit LCD

Safety Category: CAT III 600 V / CAT IV 300 V

Protection Class: IP52 (housing)

Power Supply: 8 × 1.5 V AA batteries

Dimensions (W × H × D): 225 × 130 × 140 mm

Weight: approx. 1.4 kg (with batteries)

Datasheet
