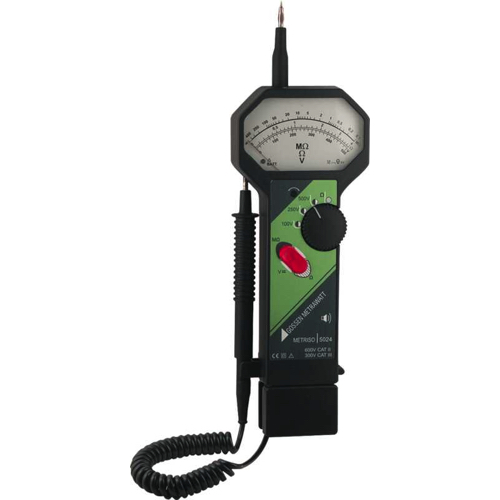

Gossen Metrawatt METRISO 5024 Insulation Measurement (0.1 – 400 MΩ; 0 – 4 Ω; 0 – 500 V)

Type: Insulation, low-resistance & voltage tester

Main Test Functions:

Insulation resistance: 0.1 – 400 MΩ

Test voltages: 100 / 250 / 500 V DC

Low resistance (continuity): 0 – 4 Ω, ≥200 mA

Voltage measurement: AC/DC 0 – 500 V

Display: Analog scale + LED illumination

Indication: LED + buzzer (GO / NO-GO)

Safety Category: CAT II 600 V

Protection: IP40

Power Supply: 4 × 1.5 V AA batteries

Dimensions (W × H × D): 98 × 310 × 40 mm

Weight: approx. 0.5 kg

Datasheet
