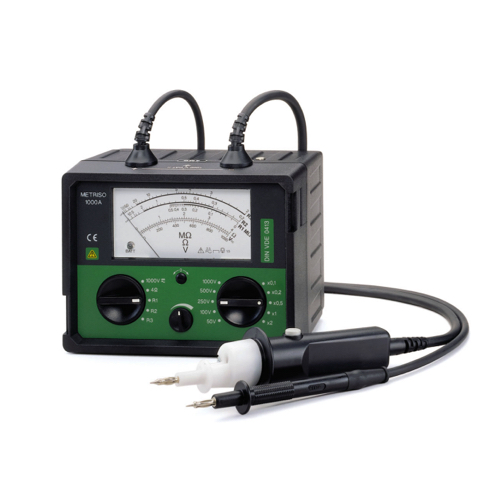

Gossen Metrawatt METRISO 1000A Insulation Tester (400 MΩ; AC/DC 0 – 1000 V)

Main Test Functions:

Insulation resistance: up to 400 MΩ

Test voltages: 50 / 100 / 250 / 500 / 1000 V DC

Low resistance (continuity): 0 – 4 Ω, ≥200 mA

Voltage measurement: AC/DC up to 1000 V

Display: Analog scale + signal lamp (OK / FAIL)

Quick test indication: Yes (signal lamp on probe)

Safety Category: CAT II 1000 V

Protection: IP52

Power Supply: 6 × 1.5 V D batteries (R20 / LR20)

Dimensions (W × H × D): 165 × 110 × 125 mm

Weight: approx. 1.6 kg (with batteries)
