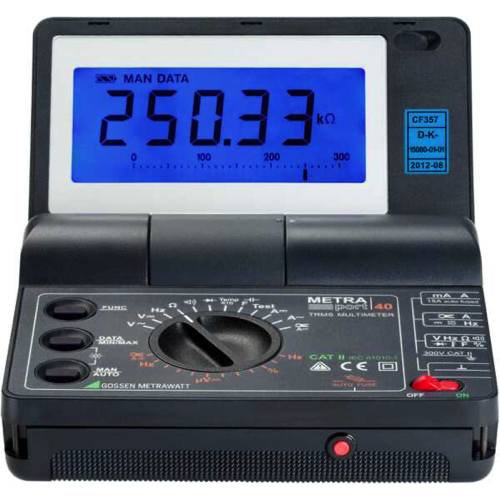

Gossen Metrawatt METRAport 40S TRMS Folding Multimeter For Automotive Service (10 kHz; 31,000 counts)

Display: 31,000 counts (4¾-digit) LCD, backlight, analog bargraph

Measurement Functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, continuity, diode, temperature (Pt100, Type K), RPM (with inductive sensor)

True RMS Bandwidth: up to 10 kHz (VAC & IAC)

Voltage Range: 30 mV … 600 V AC / DC

Current Range: 10 nA … 10 A AC / DC (single socket, resettable auto-fuse)

Resistance Range: 0 … 30 MΩ

Capacitance Range: up to 300 µF

Frequency Range: up to 1 MHz

Temperature Measurement: Pt100 auto-recognition, Type-K thermocouple

Special Features: Foldable housing, tilt stand, hands-free neck strap, current clamp support (clip function), Min/Max, data hold

Interface: USB

Safety Rating: CAT II 300 V

Protection Class: IP40 (housing), IP20 (terminals)

Operating Temperature: –10 … +50 °C

Power Supply: 2 × AA 1.5 V batteries

Dimensions (L × W × H): 146 × 118 × 44 mm

Weight (incl. battery): approx. 450 g

Datasheet
