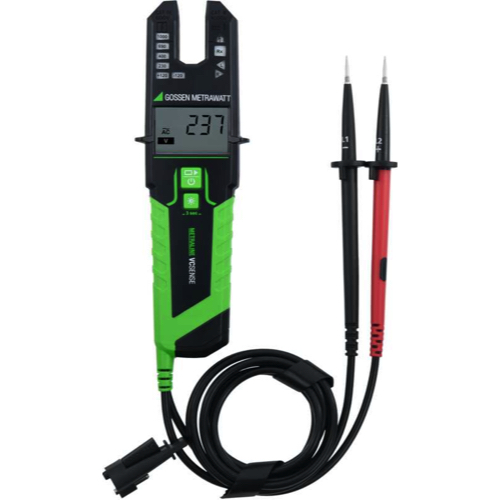

Gossen Metrawatt METRALINE VC SENSE DC Current-Voltage Tester (1 VAC~1000 VAC, 1 VDC~1500 VDC)

Display

4-digit, 7-segment display, with illumination

Voltage (AC/DC), low voltage, polarity, current, continuity, low continuity, frequency, Data Hold, Zero, overflow indicator, battery charge level indicator

LEDs: Voltage (120 V, 230 V, 400 V, 690 V, 1000 V), warning of dangerous voltage, single-pole phase test, continuity, phase sequence

Voltage testing:

1 VAC ... 1000 VAC TRMS (15 Hz ... 400 Hz),

1 VDC … 1500 VDC with polarity indicator

Current measurement: 0.1 AAC/DC ... 200 AAC/DC, 40 Hz ... 400 Hz

Single-pole phase testing: 100 VAC … 1000 VAC, 50/60 Hz

Phase sequence test: 170 V … 1000 V phase-to-phase, AC 40 Hz … 70 Hz

Continuity test: 0 Ω ... 500 kΩ +50 %, continuous acoustic signal when resistance < 20 Ω

Diode test: Continuity testing

Resistance measurement: 0 Ω … 100 kΩ

Resolution: 1 Ω for < 2 kΩ; 1 kΩ for > 2 kΩ

Frequency measurement: 0 Hz … 800 Hz

Broken Cable Detection: with sensor, drop in signal strength indicates cable break for special examination, indication via display and sounds

Measuring operation: 30 s on (operating time), 240 s off (recovery time)

Current consumption from measured object: < 3.5 mA at 1000 VAC, <6 mA (at 1500VDC)

Battery: 2 × 1.5 V AAA, IEC LR03

Measuring category: CAT IV 600 V, CAT III 1000 V, CAT II 1000 V

Flashlight: White LED

Self-test: Yes

Automatic on/off: On: Voltage, continuity / off: 10 s

Measurement cables: 19 mm probe distance, storage on the back

Opening of the current fork: 14 mm

Protection: IP64
