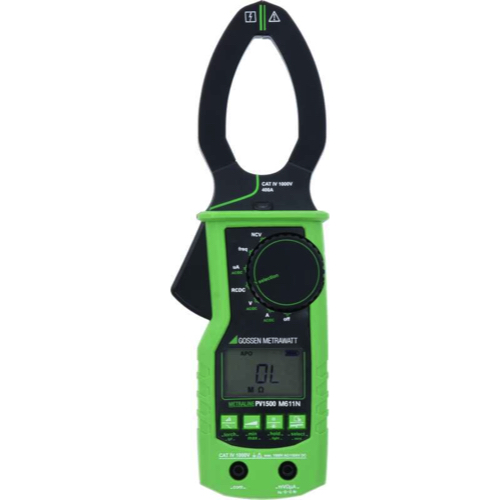

Gossen Metrawatt METRALINE PV 1500 Clamp Meter (1000 A)

Display: LCD; 7 segments, 4-digit display, backlight

LEDs: Flashlight, NCV

Voltage measurement: 1 mVAC … 1000 VAC TRMS, 1 mVDC … 1500 VDC

Overload protection - high impedance: 10 MΩ voltage measurement

Current measurement:

Clamp: 0.2 AAC … 1000 AAC TRMS, 0.01 ADC … 1000 ADC

Socket: 2 µAAC … 400 µAAC TRMS, 2 µADC … 400µADC

Resistance measurement: 0 Ω … 40 MΩ

Capacitance measurement: 10 nF … 100 µF

Continuity test: < 30 Ω acoustic signal; Reversing point 0 Ω to 30 Ω (± 20 Ω)

Diode test: 0 V … 1.0 V

Frequency measurement: 1 Hz … 9,99 MHz

Clamp opening: 35 mm, drop-shaped

Distance of measuring cables: 25 mm

TRMS: Yes

NCV (non-contact voltage measurement): Yes (AC only)

LPF (low-pass filter): Yes, 1 kHz / –3 dB

Flashlight: Yes

Automatic shutdown: Yes

Self-test: Yes

Measuring category: CAT IV / 1000 V

Pollution degree: 2

Power supply: Batteries, 2 × 1.5 V AAA, IEC LR03

Tested per: IEC 61010-1, IEC 61010-2-032

Dimensions: Approx. 255 × 81 × 43 mm

Weight: Approx. 300 g (without batteries)
