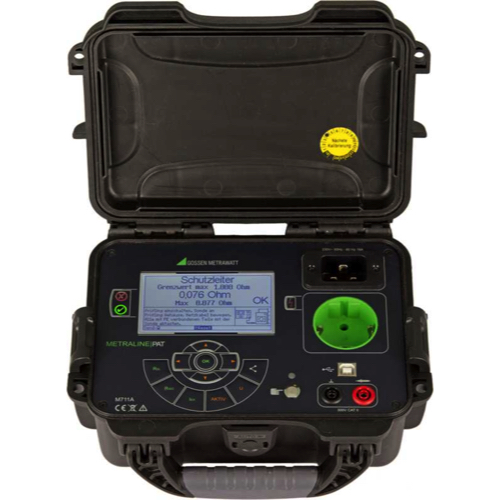

Gossen Metrawatt METRALINE PAT Portable Electrical Safety Tester (0 ... 4000 Ω; 0 ... 20.00 MΩ)

Protective conductor resistance: 0 … 4.000 Ω

Insulation resistance: 0 … 20.00 MΩ

Equivalent leakage current: 0 … 20.00 mA

Differential current: 0 … 20.00 mA

Touch current: 0 … 4.000 mA

Function test – Touch current (IT): 0.000 … 4.000 mA

Function test – Differential current (ID): 0.00 … 20.00 mA

Current consumption (I): 0.00 … 20.00 A

Line voltage (U): 0.0 … 250.0 V

Active power (P): 0 … 4000 W

Protective conductor test current: 200 mA DC

Insulation test voltage: 250 V / 500 V

Automatic polarity reversal: Yes

Integrated residual current protection: >20 mA shutdown

Bluetooth data interface: Yes

USB interface: Yes

Display: LCD dot matrix, backlit

Dimensions (W × H × D): 230 × 175 × 95 mm

Weight: approx. 1.3 kg

Protection rating: IP40
