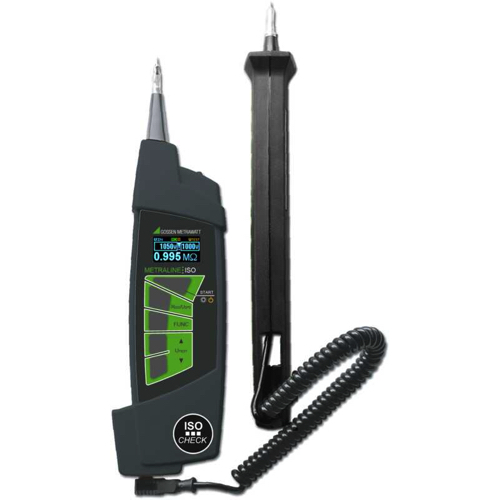

Gossen Metrawatt METRALINE ISOCHECK Insulation Measuring Instrument (0.100 MΩ ~ 10 GΩ; 40 V ~ 1000 V DC)

Insulation resistance measurement range: 0.100 MΩ to 10 GΩ

Insulation test voltage range: 40 V to 1000 V DC, adjustable

Voltage measurement range: 0 V to 600 V AC/DC

Surge protection device (SPD) testing: Varistors and gas discharge tubes with test voltages from 40 V to 1000 V

Display: Backlit color OLED display with digital measurement indication

Touch voltage indication: Automatic detection and warning of dangerous voltage

Protective device database: Integrated table of common varistors for evaluation support

Measurement illumination: Integrated LED for measurement point illumination

Automatic discharge function: Automatic discharge of device under test after insulation measurement

Safety category: CAT III 300 V (with safety cap), CAT II 600 V (without safety cap)

Protection rating: IP40

Operating temperature range: 0°C to +40°C

Power supply: 4 × AAA batteries (1.5 V alkaline or 1.2 V NiMH rechargeable)

Dimensions (W × H × D): Approx. 260 × 70 × 40 mm

Weight: Approx. 0.36 kg (including batteries)

Datasheet

Delivery

1 Test instrument with mobile test probe

4 Batteries (AAA)

1 Pouch

1 Condensed operating instructions

1 CD-ROM with operating instructions in available languages

1 Factory calibration certificate
