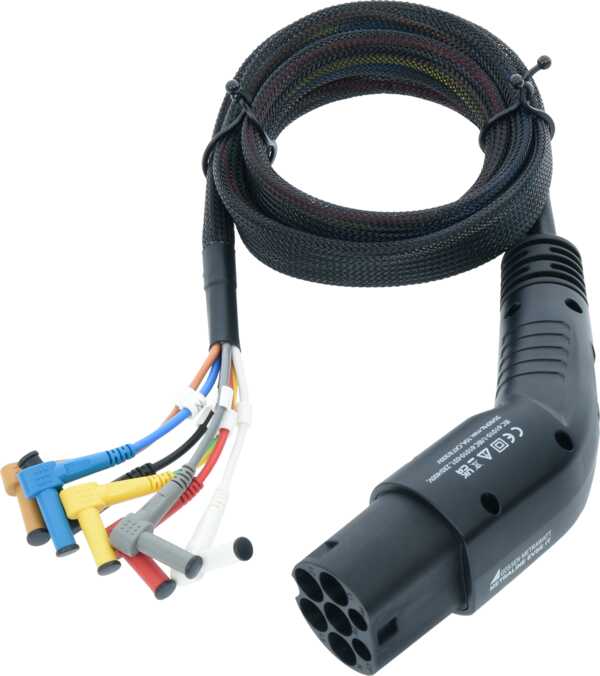

Gossen Metrawatt METRALINE EVSE IT EVSE Adapter (10 A; 230 V / 400 V 3~ 50/60 Hz)

Input voltage: 230 V / 400 V 3~ 50/60 Hz

CP simulation Mode A, B, C

Measuring category: CAT II 300 V

Fault simulation: CP fault “E”

Current-carrying capacity: max. 10 A

Operating temperatures: 0 … +40 ºC

Fixed terminals at the measuring/

test instrument: 4 mm safety plugs

Storage temperatures: –10 … +50 ºC

Charging plug: IEC 62196-2 type 2 plug

Humidity: 0 … 80 % relative humidity

Length of test cable: 1.5 m

Protection category: IP 40

PP simulation: configured internally for 32 A

Compliance with: DIN EN 61010-1 / DIN EN 61010-031
