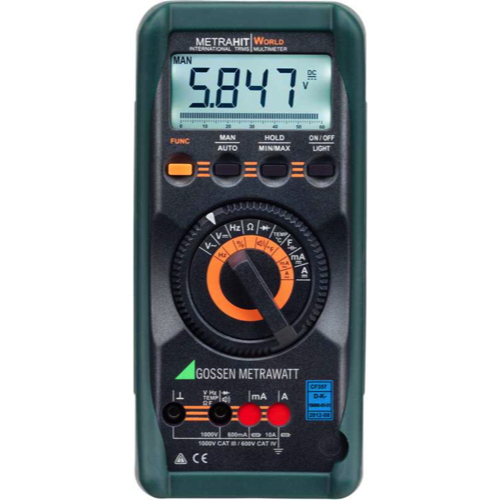

Gossen Metrawatt METRAHit WORLD International TRMS Multimeter (1000 V, 10 A AC/DC, TRMS)

Display: 6000 digits (3 6/7), analog bargraph (60 segments)

Resolution: 100 µV, 100 mΩ, 10 µA, 10 pF, 0.1 Hz

Basic Accuracy: ±0.5 % (V DC)

Voltage Range (AC/DC): 600 mV – 1000 V (TRMS)

Current Range (AC/DC): 60 mA – 10 A (16 A / 30 s overload)

Resistance Range: 600 Ω – 40 MΩ

Capacitance Range: 40 nF – 400 µF

Frequency Range: 10 Hz – 1000 kHz

Temperature Measurement: –50 °C to +800 °C (Type K thermocouple)

Duty Cycle: 2 % – 98 %

Continuity / Diode Test: Yes / Yes

Data Hold / Min-Max: Yes / Yes

True RMS: Yes

Safety Rating: CAT III 1000 V / CAT IV 600 V

Interface: Optional bidirectional IR–USB adapter

Power Supply: 2 × AA batteries

Dimensions (L × W × H): 195 × 84 × 35 mm

Weight: approx. 350 g
