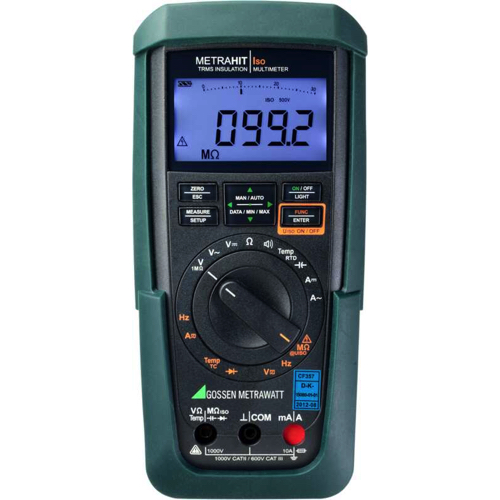

Gossen Metrawatt METRAHIT ISO TRMS Multimeter With Insulation Measurement (±30,000 Digits; 3.1 GΩ; 1000 V)

Main Test Functions:

Insulation resistance: up to 3.1 GΩ

Test voltages: 50 / 100 / 250 / 500 / 1000 V DC

Voltage measurement: AC/DC up to 1000 V (TRMS)

Current measurement: 100 nA – 10 A (AC/DC, TRMS)

Resistance: up to 30 MΩ

Frequency, capacitance, diode test, continuity, temperature (Pt100 / Pt1000 / K-type)

Display: 4¾ digit LCD, 30,000 counts, backlit

Memory: Data logger 15,400 values, Min / Max

Interface: Infrared (IR) → PC connection

Safety Category: CAT II 1000 V / CAT III 600 V

Protection: IP54

Power Supply: 2 × 1.5 V AA batteries

Dimensions (W × H × D): 200 × 87 × 45 mm

Weight: approx. 0.35 kg
