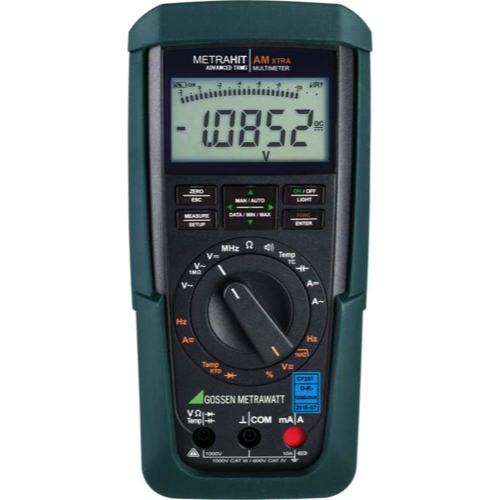

Gossen Metrawatt METRAHIT AM XTRA Universal Multimeters (20 kHz; 12,000 counts)

Display: 12,000 counts, 4½-digit LCD, backlight, analog bargraph

Measurement Functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, continuity, diode, temperature (Pt100, Pt1000, Type K)

True RMS: AC & AC+DC, up to 20 kHz

Voltage Range: 0 … 1000 V AC / DC

Current Range: 100 µA … 10 A (16 A max), single input jack

Resistance Range: 0 … 40 MΩ

Capacitance Range: up to 1 mF

Frequency Range: up to 1 MHz

Temperature Range: up to +850 °C (with probe)

Basic Accuracy: ±0.05 % (VDC)

Data Logger: 540 kB memory, up to 15,400 readings

Interfaces: Infrared (IR), power pack socket for long-term measurements

Safety Rating: CAT IV 600 V / CAT III 1000 V, ABS automatic socket blocking

Protection Class: IP52

Operating Temperature: –10 … +50 °C

Power Supply: 2 × AA 1.5 V batteries

Dimensions (W × H × D): 200 × 87 × 45 mm

Weight (incl. battery): approx. 350 g
