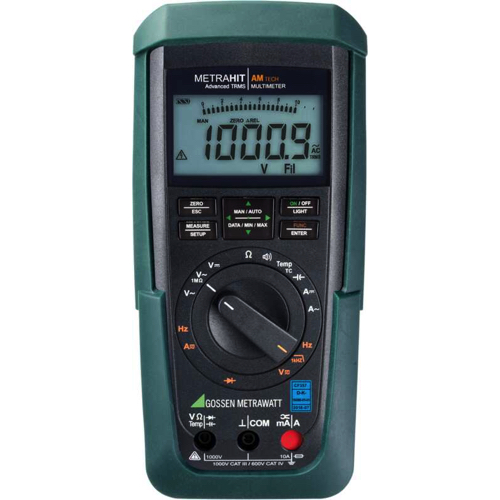

Gossen Metrawatt METRAHIT AM TECH+GH TRMS Universal Multimeter (10 kHz; 12,000 counts)

Display: 12,000 counts, 4½-digit LCD, backlight, analog bargraph

Measurement Functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, diode, temperature (Type K)

True RMS: AC & AC+DC, up to 10 kHz

Voltage Range: 0 … 1000 V AC / DC

Current Range: 1 mA … 10 A (16 A max, single input jack)

Basic Accuracy: ±0.05 % (VDC)

Special Feature: High-accuracy current measurement for transducers (0.1%), Clip function for current sensors

Safety Rating: CAT IV 600 V / CAT III 1000 V, ABS automatic socket blocking

Sampling Rate: 2 readings / second

Protection Class: IP52

Operating Temperature: –10 … +50 °C

Power Supply: 2 × AA 1.5 V batteries

Dimensions (W × H × D): 200 × 87 × 45 mm

Weight (incl. battery): approx. 350 g

Datasheet
