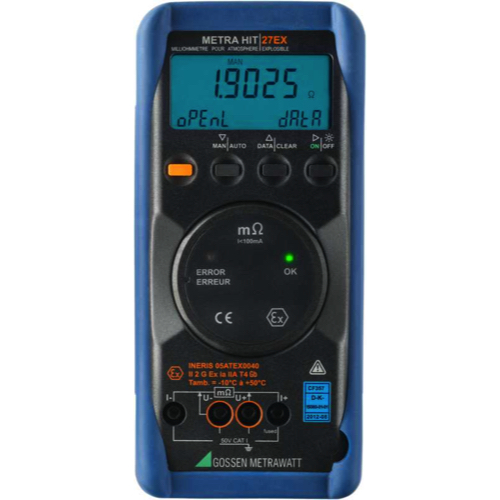

Gossen Metrawatt METRAHit 27Ex Milliohmmeter For Use In Potentially Explosive Atmospheres (600 V; 10 A; 40 MΩ)

Explosion protection: ATEX / IECEx certified (Zone 1, 2, 21, 22)

Voltage range (AC/DC): 0 … 600 V

Current range (AC/DC): 0 … 10 A

Resistance range: 0 … 40 MΩ

Frequency measurement: Yes

Continuity test: Acoustic + visual

Diode test: Yes

True RMS: Yes

Display: Digital LCD, backlit

Measurement category: CAT III 600 V / CAT IV 300 V

Protection class: IP54

Power supply: 2 × AA batteries

Operating temperature: -10°C … +50°C

Explosion protection marking: II 2G Ex ib IIC T4 Gb

Dimensions (L × W × H): 190 × 87 × 52 mm

Weight: approx. 0.4 kg
