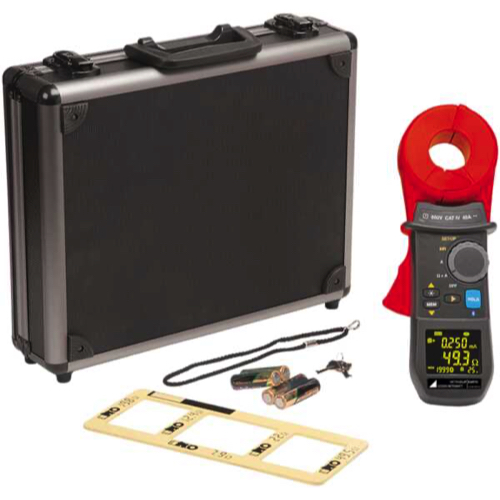

Gossen Metrawatt METRACLIP EARTH PE Earth Clamp Meter (0.01 Ω ~ 1200 Ω; 0.1 mA ~ 30 A)

Main functions: Stakeless earth resistance measurement, AC leakage current measurement (PE conductor)

Earth resistance range: 0.01 Ω ~ 1200 Ω

Resolution: 0.01 Ω

Accuracy: ±1.5 % rdg ±0.05 Ω

AC current range: 0.1 mA ~ 30 A

Current resolution: 0.01 mA

Jaw opening (max conductor Ø): 32 mm

Frequency range: 45 ~ 400 Hz

Display: Backlit LCD

Additional functions: HOLD, Auto Power Off, low battery indication

Power supply: 2 × 1.5 V AA batteries

Operating temperature: 0 ~ +40 °C

Dimensions: 230 × 70 × 35 mm

Weight: ≈ 0.6 kg
