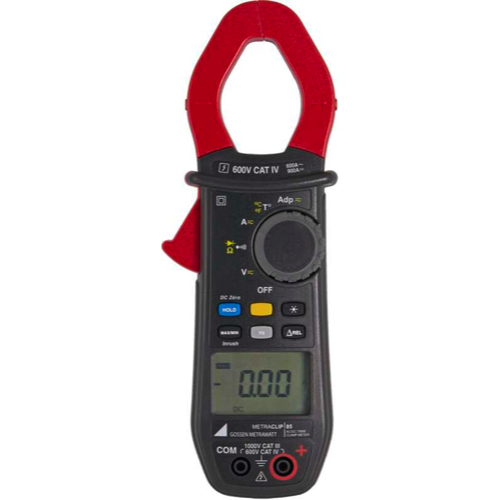

Gossen Metrawatt METRACLIP 85 Clamp Multimeter (1000 V AC/ DC, 600 A AC, 900 A DC)

Clamp opening: 34 mm

Current:

AC 60.00 / 600.0 A rms bei 10 Hz - 3 kHz

DC ±60.00 / ±600.0 / ±900 A dc

AC+DC 60.00 / 600.0 A rms

60.00 / 600.0 / 900 A peak

Inrush current: 6 ..600 A rms / 900 A peak

Voltage:

AC 60.00 / 600.0 / 1000 V rms bei 10 Hz - 3 kHz

DC ±60.00 / ±600.0 / ±1000 V dc

AC+DC 60.00 / 600.0 / 1000 V rms

60.00 / 600.0 / 1400 V peak

Frequency:

f (Uac) 5.0 Hz ..19.99 kHz

f (Iac) 5.0 Hz ..2999 Hz

Battery: 9 V, IEC 6LF22, 6LR61 or NEDA 1604; > 130 hours (without display illumination)

Additional measurements:

Relative and differential measurements

Temperature in °C/°F via type K thermocouple

Adapter function

Display: 7-segment characters; 6000 digits

Protection: Housing: IP 54, clamp jaws: IP 40

Dimensions H x W x D: 222 x 78 x 42 mm

Weight Approx. 340 g
