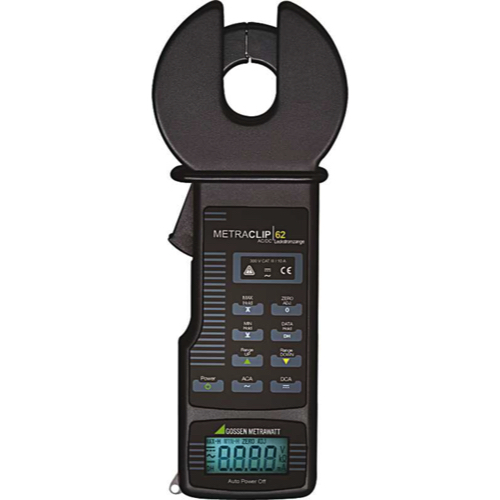

Gossen Metrawatt METRACLIP 62 Digital Current Clamp For Leakage And Charging Current Measuring (1 mA~10 A AC TRMS / DC)

Measuring Ranges

A AC TRMS with automatic zero balancing

Meas. Range: 200 mA, 2000 mA, 10 A

Input: 0~199.9 mA, 0~1999 mA, 0~9.99 A

Resolution: 100 uA, 1 mA, 0.01 A

Accuracy at 18~28 °C, max. 80% relative humidity:

±1.0% rdg. ±5 digits

±1.0% rdg. ±5 digits

±1.0% rdg. ±10 digits

A DC with automatic zero balancing

Meas. Range: 200 mA, 2000 mA, 10 A

Input: 0~199.9 mA, 0~1999 mA, 0~9.99 A

Resolution: 100 uA, 1 mA, 0.01 A

Accuracy at 18~28 °C, max. 80% relative humidity:

±1.0% rdg. ±3 digits

±1.0% rdg. ±3 digits

±1.0% rdg. ±10 digits

Reference Conditions

Ambient temperature relative humidity: +23°C±5 °C max. 80%

LCD

Display: 7-segment characters

Number of places: 3½ digits, max. display 1999

Sampling rate: Digital display: 1.6/s

Overflow display: OL appears

Display for DATA HOLD: DH appears

Power Supply

Batteries: 2 x LR6 (AA size)

Service life: with alkaline-manganese batteries: approx. 120 hours

Battery test: Symbol B is displayed automatically if battery voltage is too low

Automatic shutdown: the device turns itself off automatically 10 minutes after it has been switched on.

Mechanical Design

Clip opening max. dia. 18 mm

Dimensions W x H x D: 76 mm x 194 mm x 30 mm

Weight approx. 350 g with batteries
