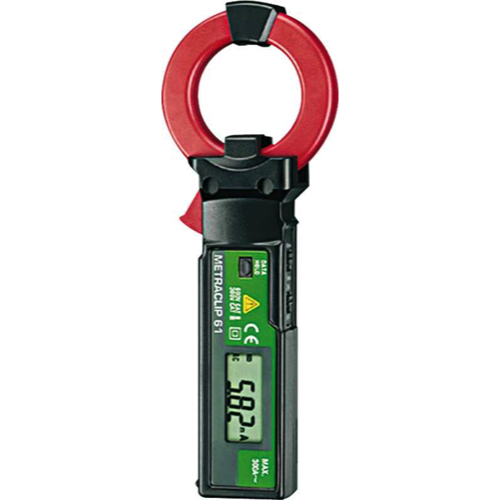

Gossen Metrawatt METRACLIP 61 Digital Leakage Current Clamp (30 ~ 300mA; 30 ~ 300A)

Alternating Current mA AC/A AC (Manually Selectable)

Measuring Range/ Range of Application/ Resolution/ Accuracy

0~30 mA, 0~300 mA/ 0~300 mA/ 0.01 mA, 0.1 mA/ ±1.2% rdg. ±5 digits

0~30.00 A, 0~300.0 A/ 0~200 A, 200~250 A, 250~300 A/ 0.01 A, 0.1 A/ ±1.2% rdg. ±5 digits, ±3% rdg. ±5 digits, ±5% rdg. ±5 digits

Frequency range: 50 ~60 Hz

Measuring principle: arithmetic mean

Reference Conditions

Ambient temperature: +23°C±5°C

Relative humidity: max. 80%

LCD Panel

Display: 7-segment characters and bargraph

Number of digits: 3½ digits, max. display: 3200

Sampling rate:

Digital display: 2 per second

Bargraph: 12 per second

Overflow display: OL appears

DATA HOLD display: DH appears

Power Supply

Batteries: 2 x LR44 or SR44

Mechanical Design

Protection: IP 40

Clamp opening: max. diameter 40 mm

Dimensions W x H x D: 64 mm x 176 mm x 23 mm

Weight approx. 125 g with batteries
