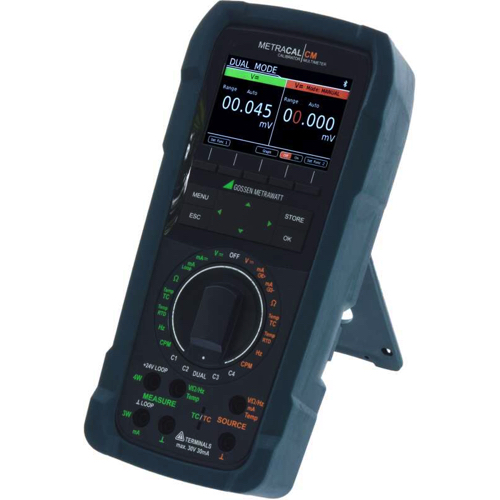

Gossen Metrawatt METRACAL CM XTRA High-Precision Multimeter And Process Calibrator (±0.01%; 24 V)

Dual Mode: Simultaneous measurement + simulation

DC Voltage Accuracy: ±0.01% (basic accuracy)

Current Loop Power: Integrated 24 V loop supply

HART Interface: Integrated HART communication (full device configuration & diagnostics)

Frequency Generator: 1 Hz – 50 kHz

Pulse Generator: 6 – 3000 CPM

Resistance Measurement: 2-wire / 3-wire / 4-wire

RTD / TC Support: Pt100 … Pt1000, Ni100 … Ni1000, all common thermocouples

Pressure Module Support: External pressure modules (optional)

Display: High-resolution color TFT display, automatic brightness

Data Logger: Built-in logger with real-time clock

Interfaces: Bluetooth®, USB

Protection Rating: IP52

Battery: Quick-change Li-ion battery, micro-USB charging
