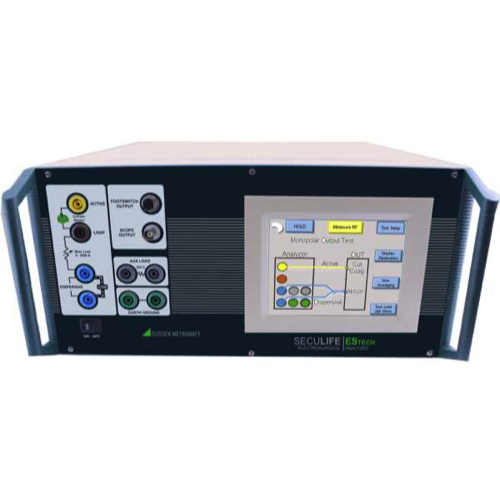

Gossen Metrawatt M695F High-End TRMS RF Surgical Generator Analyzer (5 ~ 5500 Ω)

Calculated Ranges

Load voltage

Range: 0 … 1000 VRMS

Resolution: 1 V

Accuracy: ± 5%

Power

Range: 0 … 999.9 W

Resolution: 0.1 W

Accuracy: ± (4% of reading + 1W)

Crest factor: 1.4 – 500, Resolution: 0.1

RF Measurement/Testing

Calculated Ranges

Load voltage:

Range: 0 … 1000 VRMS

Resolution: 1 V

Accuracy: ± 5%

Power

Range: 0 … 999.9 W

Resolution: 0.1 W

Accuracy: ± (4% of reading + 1W)

Crest factor: 1.4 – 500, Resolution: 0.1

Characteristics

Input:

Impedance: 0 … 5500 Ω

Connection: 4 mm safety jack

Maximum voltage: 10 kV

Frequency: 10 kHz …10 MHz

Method: Pearson current to voltage converter, 0.1 V : 1 A

Voltage

pk, pk – pk: 2.0 … 1000.0 mV

Resolution: 0.1 mV

Current:

Range: 2 … 7000 mA RMS

Resolution: 1 mA RMS

Load Bank Specifications

Maximum current

0 Ω: 8 A RMS external load

Using “ACTIVE” and “LOOP” terminals only

5 – 5500 Ω: 3.5 A RMS internal or internal + external load

Internal load selection

Range: 0 … 5500 Ω, 5 Ω steps

Resolution: 5 Ω

Accuracy: 1% ±0.5 Ω, non-inductive

Power rating:

< 50 Ω: 400 W

50 to < 800 Ω: 500 W

≥ 800 Ω: 300 W

Duty cycle: 10 seconds on, 30 seconds off

Load cooling: Dual 120 mm variable speed fans (controlled by load temperature or input power measurement)

Resolution: 0 … 5500 Ω

Accuracy: 1 Ω
