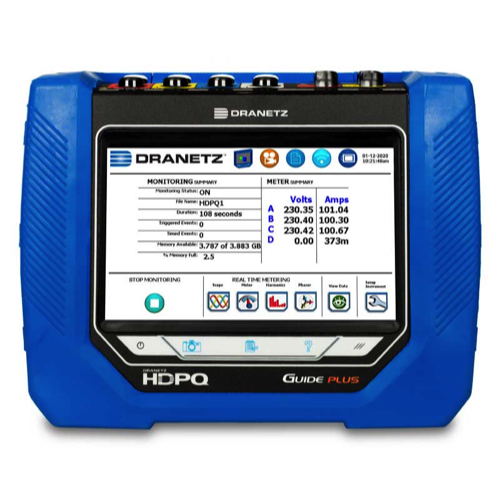

Gossen Metrawatt HDPQ PLUS Power Quality (400 Hz)

Measurement Channels:

Voltage: 4 differential channels

Current: 4 channels

Voltage Measurement:

Range: 0 – 1000 Vrms, AC/DC

Accuracy: ±0.1% of reading

Transients: up to 1414 Vpk

High-speed transients: up to 2000 Vpk

Current Measurement:

Range: Probe dependent, AC/DC

Accuracy: ±0.1% of reading ±0.05% FS

Frequency Measurement:

Range: 16 – 25 Hz / 42.5 – 69 Hz

Accuracy: ±0.01 Hz

Sampling & Resolution:

512 samples/cycle

16-bit resolution

Power & Energy Parameters:

Active, reactive, apparent power

Power factor (true & displacement)

Demand and energy measurement

Display: 7" WVGA color touchscreen LCD

Memory: Internal memory: 4 GB

Interfaces & Communication:

Ethernet

USB (OTG)

Optional Bluetooth

VNC remote access

Mobile apps (Android & iOS)

Power Supply: AC adapter: 100–240 V AC, 50/60 Hz

Internal rechargeable battery: approx. 3 hours runtime

Safety Category:

Voltage inputs: CAT III 1000 V

Mains supply: CAT II

Operating Temperature: 0°C ~ +50°C

Storage Temperature: –20°C ~ +55°C

Humidity: 10 – 90% RH, non-condensing

Max. Altitude: 2000 m

Dimensions (W × H × D): 254 × 203 × 70 mm

Weight: approx. 1.9 – 2.0 kg
