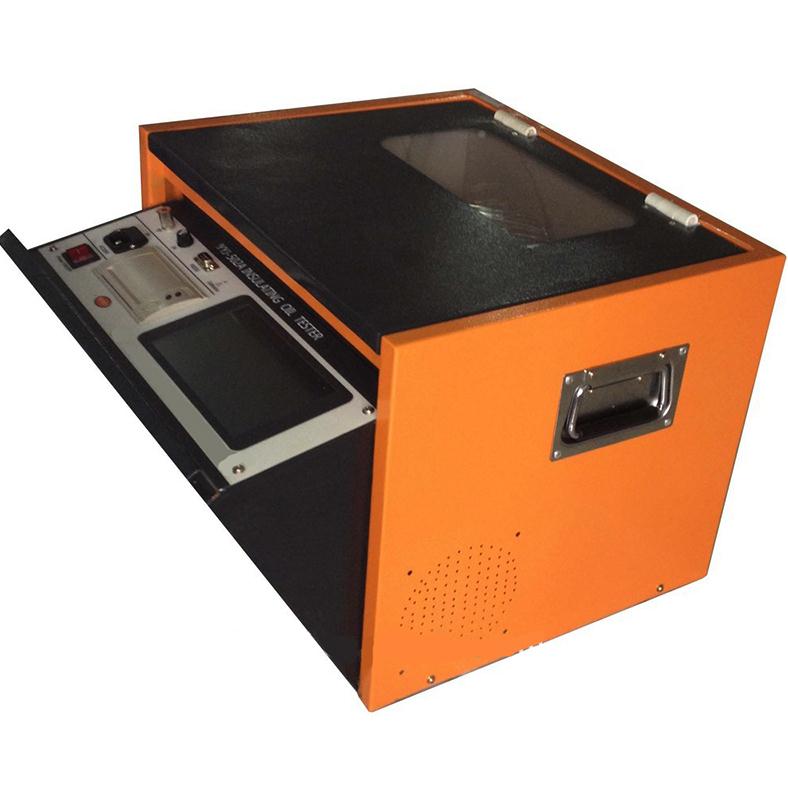

GOLDSOL YJJ-502A Insulation Oil Tester

Power supply input: AC220V±10%

Output voltage: AC 0V~100KV

Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

Max test times: 9

Init wait time: 0~999s

Stir time: 0~999s

Wait time: 0~999s

Measurement accuracy: ±(1% of full scale + 2 digits), resolution:0.1KV

Temperature measurement

Measurement range: 0℃ to 70℃, or better

Temperature resolution: 1℃, or better

Operating temperature: up to 50℃

Storage: 100 groups

7 inch colorful LCD with touch pad

Oil test vessel temperature measurement unit

Weight: 38kg

Size: 460 mm*380mm*360mm

Accessories:

Insulating oil tester: 1 unit

Power line: 1 unit

Grounding line: 1 unit

Test vessel: 1 unit

Electrodes Mushroom, Flat or Spherical type: 1 set

Feeler gauge 1mm, 2mm, 2.5mm, 4mm

Insulation cover: 1 pair

Stirrer (Magnon): 1 unit

High voltage column: 1 pair

USB-RS232 connection line: 1 unit

Thermal print paper: 1 unit

Fuse: 1 set

Instruction manual: 1 unit

Disk: 1 unit

Test report: 1 unit

YJJ-502A is developed according to the national standard GB-86 & IEC60156 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .It is very easy for customers to measure the breakdown voltage of all kinds of oil. It can print the test result by the built-in micro printer. Of course, it can upload the test data to PC from RS232 & USB for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.
