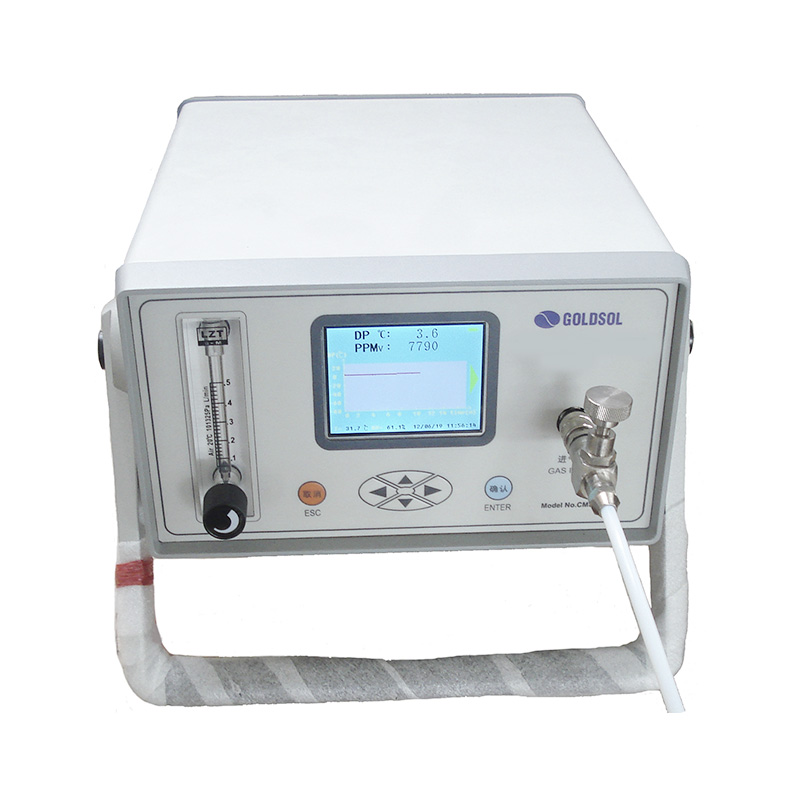

GOLDSOL CMS-EX SF6 Dew Point Tester (－80℃～+20 ℃)

Dew Point:

Test Range: －80℃～+20 ℃

Accuracy:

±0.5℃（－60℃～＋20℃)

±1.0℃（－80℃～－60℃）

Response Time (＋20℃):

63%: 5secs; 90%: 45secs（－60℃～＋20℃）

63%: 10secs; 90%: 240secs（+20℃～－60℃)

Ambient Temperature: －40℃～＋60℃

Display: 3.5" colour LCD

Power Supply: AC 220V; Built in rechargeable battery

Battery character: 10 hours continuous working after 20 hours recharging.

Weight: 5 kgs

Size: 250×150×300mm

Accessories

SF6 Analyzer (Host): 1

Portable aluminum alloy suitcase: 1

Test tube with valve for gas Input: 1

Soft tube for gas output: 1

Power supply cable: 1

Metal joint: 2

Metal joint set (for buyer’s option): 1

Calibration report: 1

Operating manual: 1

1. Self-calibration: automatic calibration sensor probe can automaticly calibrate zero, eliminating systematic error of zero drift, to ensure the accuracy of each measurement, at the same time eliminates the tedious annual check.

2. Rapid gas saving: SF6 gas partition dew point testing time of 5min after turnning on.

3. Curve features: large-screen curve shows the process of dew point measurement .

4. Self-locking joints: The lock joints  imported from Germany, safe and reliable, no leaks.

5. Data storage: The design of large capacity can store up to 200 group test datas.

6. RS232 interface: Data can be uploaded to computer.

7. Clear display: dew point, misture (ppm), ambient temperature, humidity, time and date, battery can be display on LCD directly.8. Built-in power supply: Built-in 4Ah rechargeable lithium battery, each recharging can keep 10 hours continuous working.

9. Printer (optional).
