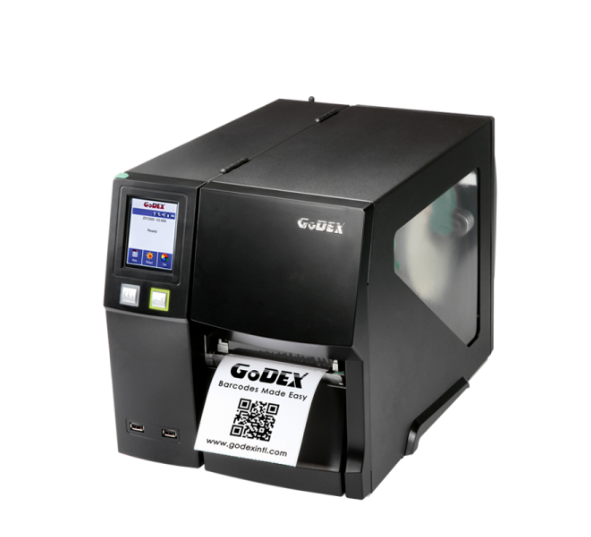

Godex ZX1600i Industrial barcode printer (Direct Thermal, 4 IPS, 4.09")

Print Method: Thermal Transfer / Direct Thermal

Resolution: 600 dpi (24 dots / mm)

Print Speed: 4 ips (102 mm / s)

Print Width: 4.09" (104mm) Up to (105.6mm)

Print Length: Min. 0.16" (4 mm) **; Max. 26" (660 mm)

Processor: 32-bit RISC CPU

Memory: Flash: 128 MB Flash (60 MB for user storage), SDRAM: 32 MB

Interfaces: • USB 2.0 (B-Type) • Serial Port • Ethernet port (RJ-45) • 3 x USB Host (Typ A)

Ribbon: Length Max. 1476' (450 m) Width Min. 1.18" (30 mm) – Max. 4.33" (110 mm) Core diameter 1" (25.4 mm)

Control Panel: • Backlight 3.2" touch screen LCD • 1 Power on / off button with green color LED backlight • 1 Control key: FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) • 1 Calibration button at rear panel
