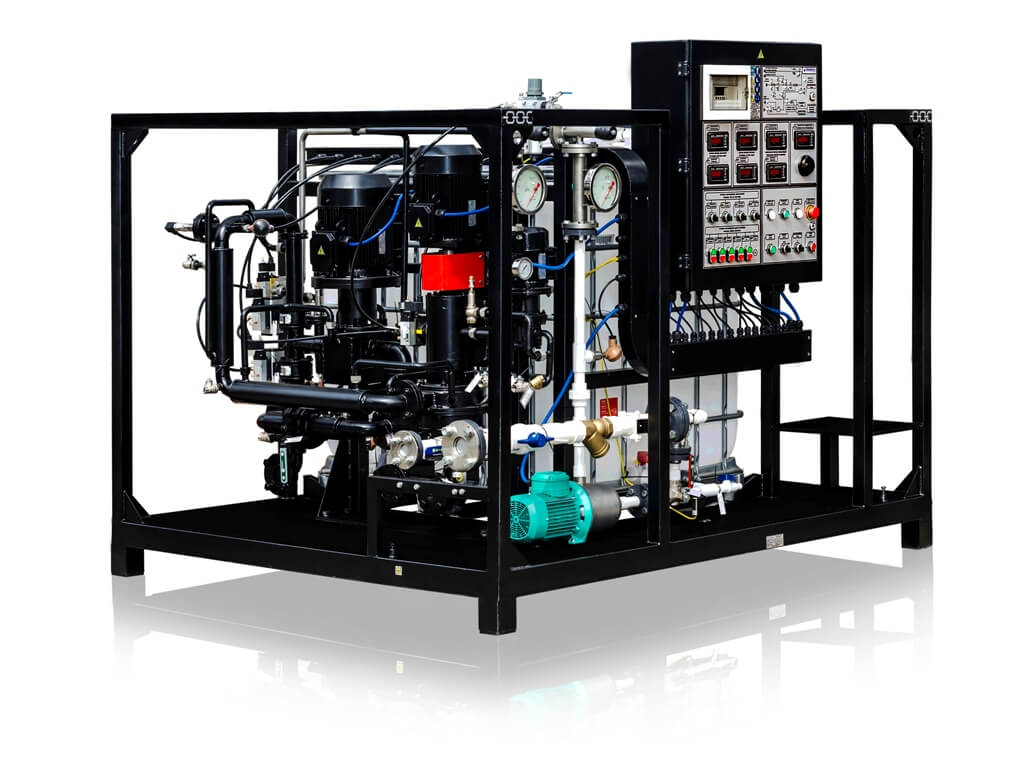

GlobeCore UVB-1 Bitumen emulsion unit (1 m3/h; 17 kW)
Maximum production capacity (preparation time included), m3/hour: 1
Minimum bitumen consumption, m3/hour: 0.97
Water consumption, m3/hour: 0.6–0.7
Flux consumption, dm3/hour: 0–50
Acid (alkali) consumption, dm3/hour: 1–20
Emulsifier consumption, dm3/hour: 1–20
Adhesion additive consumption, dm3/h: 1–20
Max bitumen input pressure, Mpa: 0.2
Bitumen to mixer pressure, Mpa: 1.4… 1.6
Water phase to mixer pressure, Mpa: 0.2
Bitumen input temperature, °С: 140–160
Water input temperature, °С: 40–60
Max emulsion output head, m: 15
Max nominal power, kW: 17
Power voltage at 50 Hz, V: 380
Compressed air supply, bar: 4–6
Air consumption, dm3/min: 100
Dimensions (L/W/H), mm: 2250/1750/1840
Max weight, kg: 1050
