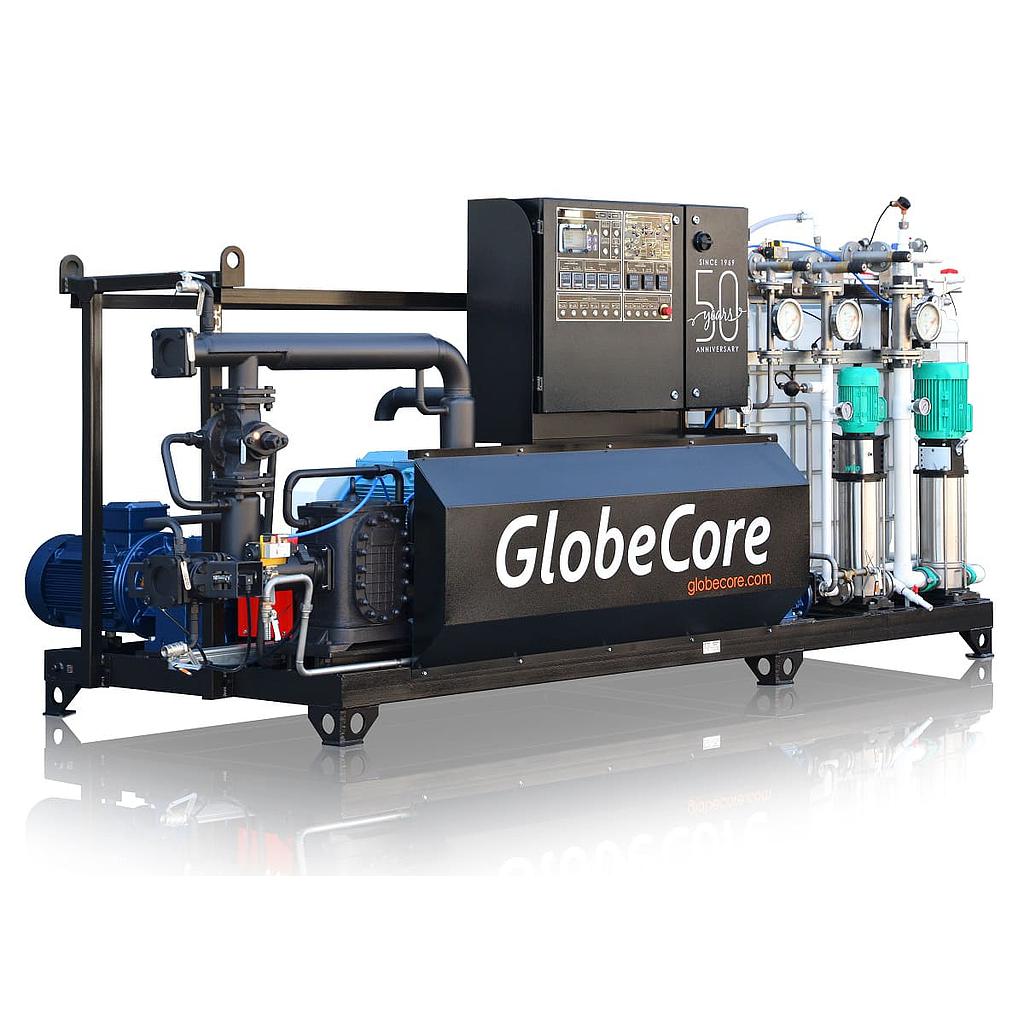

GlobeCore USB-2-8-m3-h Bitumen emulsion unit (8 m3/h; 33 kW)
Maximum production capacity (preparation time included), m3/hour: 8
Minimum bitumen consumption, m3/hour: 10.5
Water consumption, m3/hour: 5–7
Flux consumption, dm3/hour: 50–250
Acid consumption, dm3/hour: 50–150
Emulsifier consumption, dm3/hour: 50
Max bitumen input pressure, Mpa: 0.2
Bitumen to mixer pressure, Mpa: 1.4
Water phase to mixer pressure, Mpa: 0.2
Bitumen input temperature, °С: 140–160
Water input temperature, °С: 40–60
Max emulsion output head, m: 10
Max nominal power, kW: 33
Power voltage at 50 Hz, V: 380/220
Dimensions (L/W/H), mm: 4500/2250/1800
Max weight, kg: 1800
