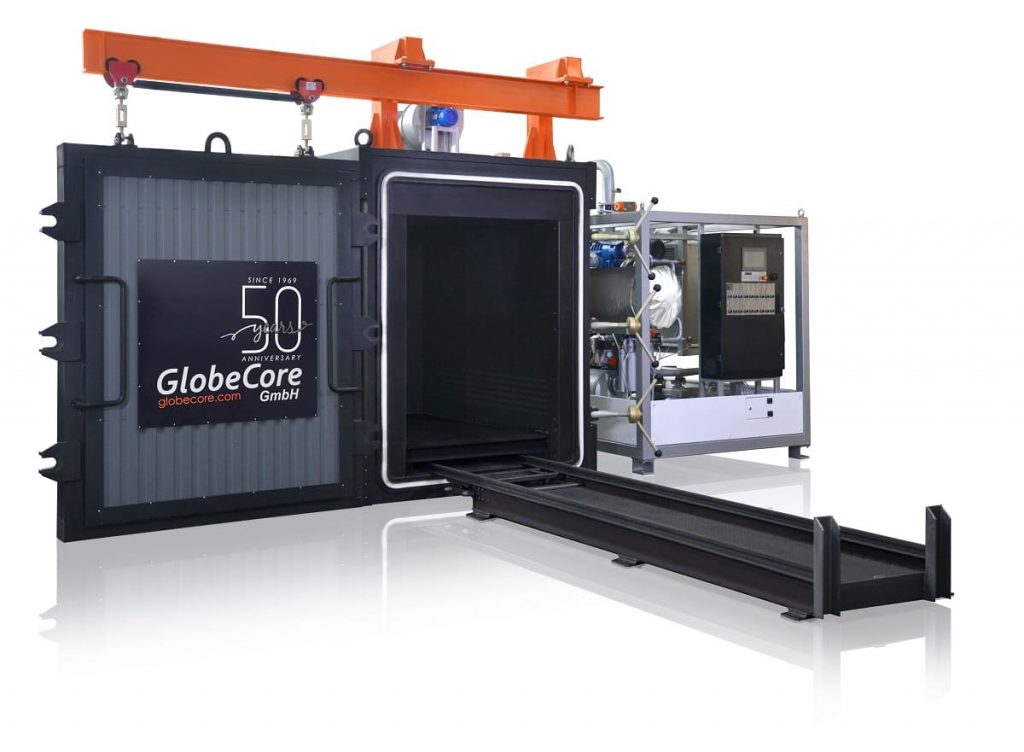

GlobeCore US-6S Transformer vacuum furnace (45 kW; 11 kW)

Drying chamber

Internal dimensions, mm, max:

– depth: 2,000

– width: 1,300

– height: 1,600

Heating section

Heater power, kW: 45

Temperature adjustment range, °С: 20…120

Quantity of thermal electric heaters, pcs: 15

Vacuum section

Capacity, m3/h: 1,000

Total power level of engines, kW: 11

Achieved vacuum level, mbar: 1

Circulation system

Capacity, m3/h: 2,000

Fan power, kW: 2.2

Exhaust system

Capacity, m3/h: 2,000

Fan power, kW: 1.1

Condensation system

Chiller power, kW: 3.0

Cooling performance of chiller, kcal/h: 6,000

Condensation area, m2: 7.5

Heat exchanger (condenser) type: shell-and-tube

Pneumatic system

Compressor power, kW; 1.1

Pressure, bar: 9
