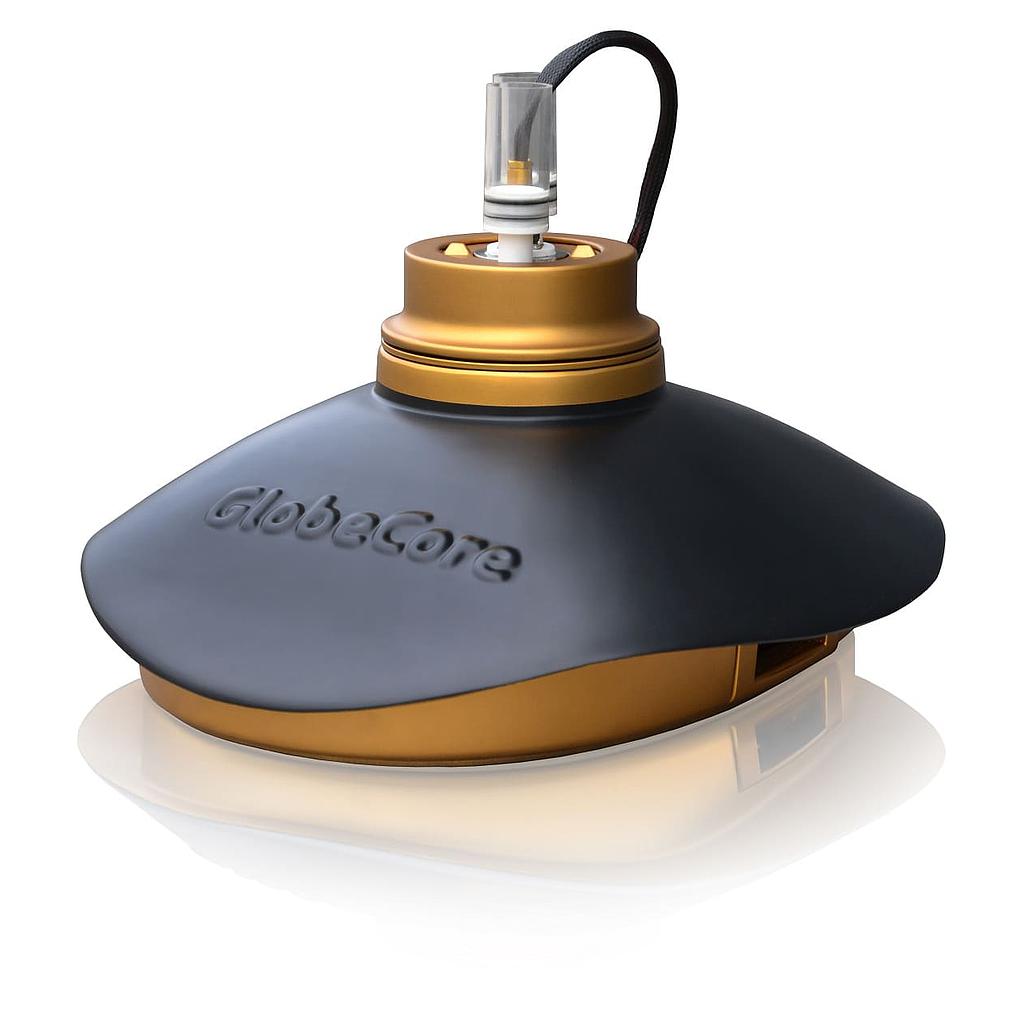

GlobeCore TOR-3 Oil Tan Delta Tester (500 - 2000 V RMS)

Operating AC voltage, V: 100-260

Power frequency, Hz: 48 – 63

Power requirement, VA: Not more than 250

Applied measuring voltage AC, kV: Sinusoidal, 500 - 2000 V RMS

Measurement range, Tan δ: 0.00001 – 4

Measurement resolution, Tan δ: 1x10^-6

Measurement tolerance, Tan δ: +/- 1% of measurement + 0.00008

Measurement range of dielectric constant, ε: 1.0 – 15.0

Measurement range of electrical capacitance, °C : 20 – 1000 pF

Measurement range of oil temperature, °C: 20 – 110

Measuring cell volume, cm^3: 42

Electrical capacitance of empty cell: 65 – 85 pF

One measurement duration, not more than, min: 20

AC frequency setting range, Hz: 45 – 65

Temperature measurement resolution, °C: 0.5

Integrated printer : no Operating temperature, °C : 0 - 50

Storage temperature, °C: From – 20 to + 60

Relative humidity, % : Up to 90 without condensation

Dimensions, mm, not more than: 400x450x300 (With installed and connected cell)

Weight, kg, not more than: 5.3 (With installed and connected cell)
