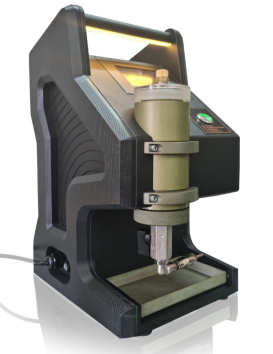

GlobeCore TOR-2 Hydrogen and Moisture Analyzer for Transformer Oil Monitoring (Hydro: 25-5000ppm)

- Moisture measurement data:

Operating range, aw (water activity ): 0...1

Accuracy (water activity): ±3 %

Accuracy (moisture content): ±10 % or ±10 ppm

Temperature measurement: yes

Operating medium temperature, °C: 0...55

- Hydrogen measurement data:

Measurement range, ppm: 25-5000

Precision: 20% of indication, or 25 ppm

Repeatability: 10% of indication, or 15 ppm

Response time: <60 min (90% of step change)

Cross-sensitivity: Less than 2% of crosssensitivity to other gases (CO,CO2, hydrocarbons)

Operating medium temperature, °C: 0...55

Power requirement, W: 60

Single phase 50 - 60 Hz AC power supply voltage, V: 100-260

Dimensions, mm, not more than – length: 190

Dimensions, mm, not more than – width: 255

Dimensions, mm, not more than – height: 365

Weight, kg, not more than: 5.5
