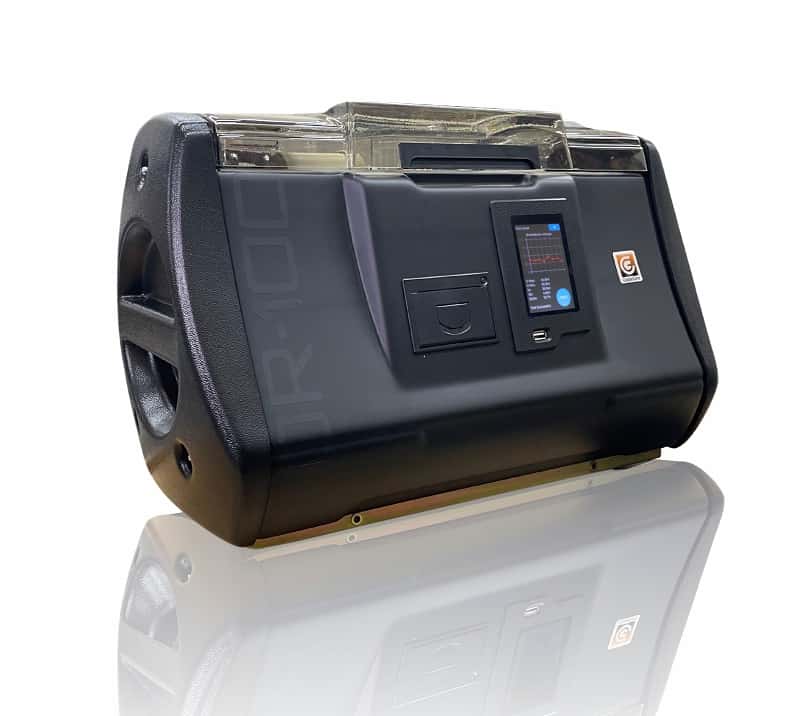

GlobeCore TOR-100 Breakdown Voltage Tester (100 kV)

Operating AC voltage, V: 100-260

Power frequency, Hz: 48 – 63

Power requirement, VA: 80 max

Max output voltage, kV: Sinusoidal, up to 100 kV RMS

Output voltage measurement tolerance, kV: ±1

Voltage increase rate, kV/s: From 0.5 to 10 kV (Adjustable)

Resolution of output voltage indication, V: 100

High voltage shutoff time after breakdown, μs : 10 max, 4 typical

Measuring cell volume, cm^3: 500

Measurement range of ambient temperature, °C : 0-100

Temperature measurement resolution, °C: 0.1

Integrated printer: yes Operating temperature, °C: 0-50

Storage temperature, °C: From – 20 to + 60

Relative humidity, %: Up to 90 without condensation Dimensions, mm, not more than: 510x300x350

Weight, kg, not more than: 30
