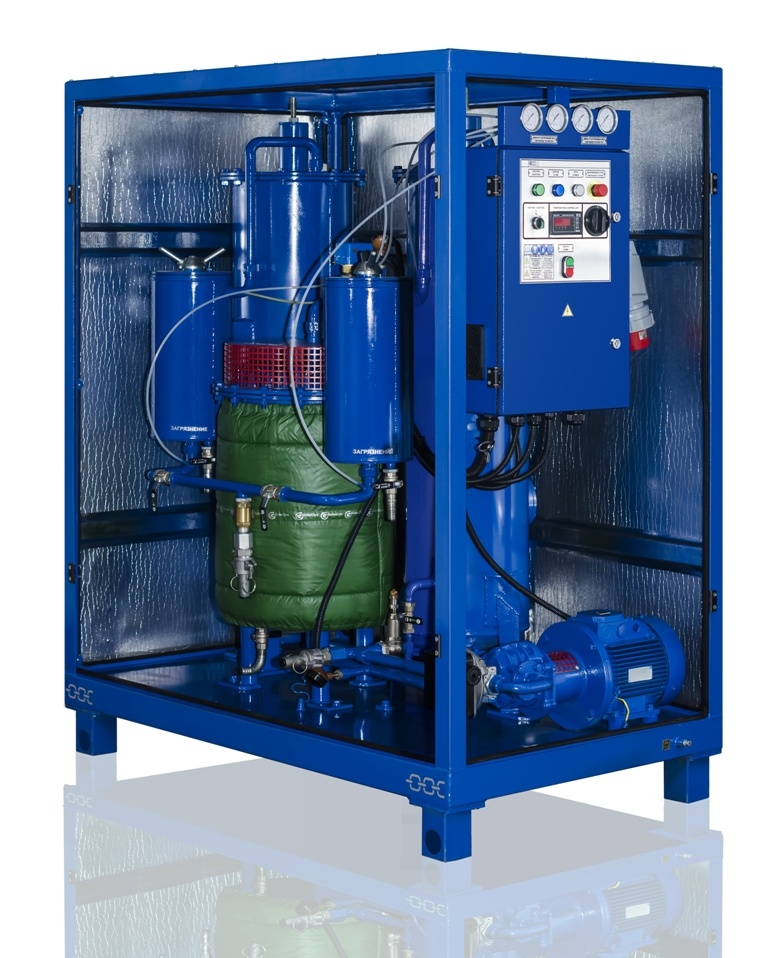

GlobeCore MCU-7 Zeolite oil drying unit (2 m3/h; 4.3 m3/h; 33 kW)

Capacity, m3/hour, minimum/gals. per hour:

• drying, regeneration and filtration mode: 1.5-2.0/392-529

• heating mode: 3.6-4.3/953-1138

Max oil outlet temperature, ⁰С/⁰F:

• drying and filtration mode: 35/95

• heating mode: 65/149

Sorbent max load, kg: 100

Sorbent regeneration temperature, ⁰С/⁰F:

Zeolite NaA: 250/482

Silica gel: 120/248

Sorbent regeneration without unloading: Yes

Processed oil parameters:

• industrial purity class (ISO 4406): 9 (-/14/12)

• solid particle content, max, g/t: 10

• acid number, mg KOH/g of oil, max: 0.02…0.05

• nominal filtration fineness, micron: 5

• mass weight content, g/ton per cycle, max: 10

• dielectric loss tangent at 90 ⁰С/194 ⁰F, max: 1.5

• dielectric strength, kW, min: 65

Mean heater surface power, W/cm2, max: 1.2

Heater power, kW, max: 28.8

Max power consumption, kW: 33

Three phase AC power voltage, 50/60Hz, V: 380

Dimensions, mm/ft, max, length/width/height: 1500/900/1735 (4’59”/2’95”/5’69”)

Weight, kg/lbs, max: 750/1,657.5
