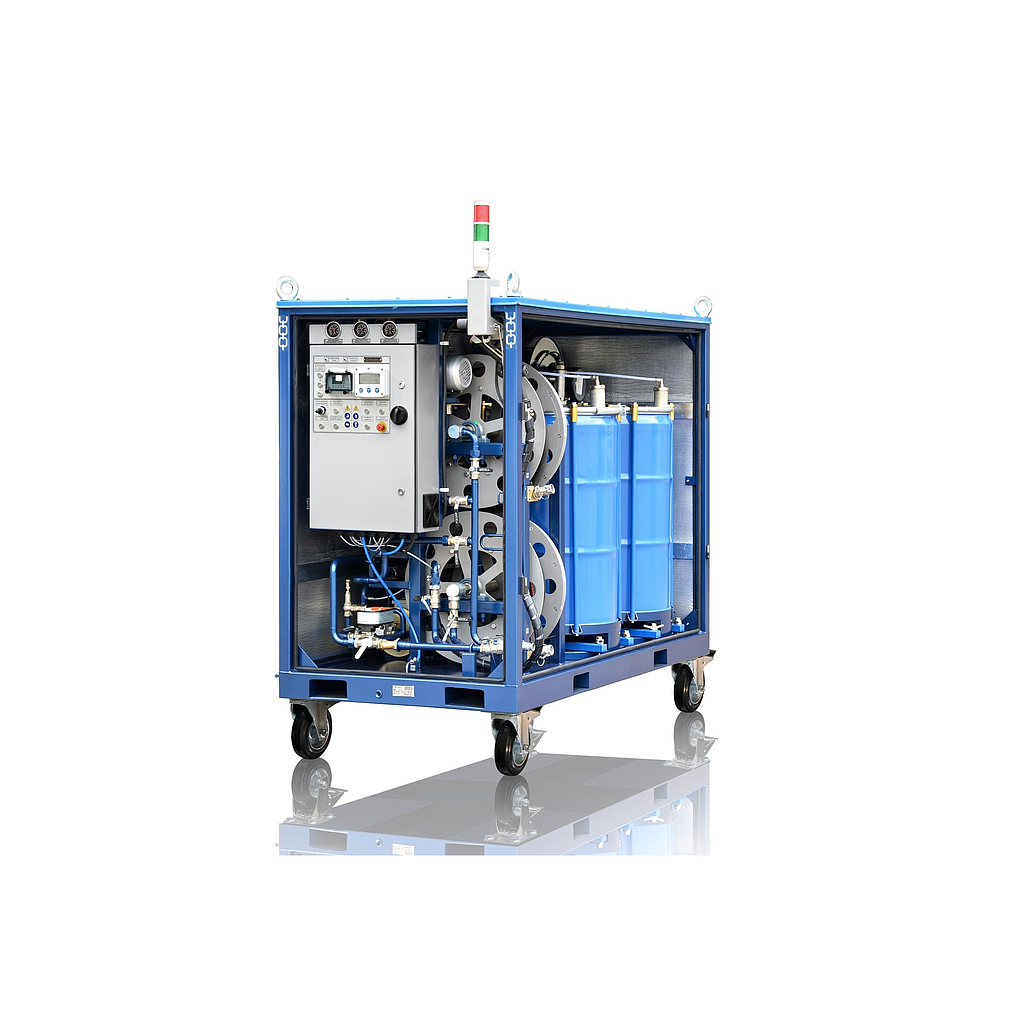

GlobeCore CMM-600CF Transformer oil filtration and refilling machine (1000 l/h; 600 l/h; 1.55 kW)

Capacity, liters/hour (gpm), max:

- no degassing: 1000 (4.4)

- degassing: 600 (2.64)

* Output oil parameters:

– ISO 4406 purity class: -/16/13

Output pressure, bar (psi): 2 (29)

Max power requirement, kW: 1.55

Power supply:

– voltage, V: Fully Customizable

– AC frequency, Hz: Fully Customizable

Dimensions, mm (in):

– length with tow hitch retracted: 2200 (87)

– width: 1100 (43)

– height: 1840 (72)

Max weight, kg (lbs): 850 (1870)

* Note: – with initial oil quality -/18/16 per ISO 4406.
